SKU: RI360P0-QR24M0-IOLX2-H1141/3GD
Flange without mounting element · Hollow shaft · Connector, M12 × 1
List price. Volume pricing available.

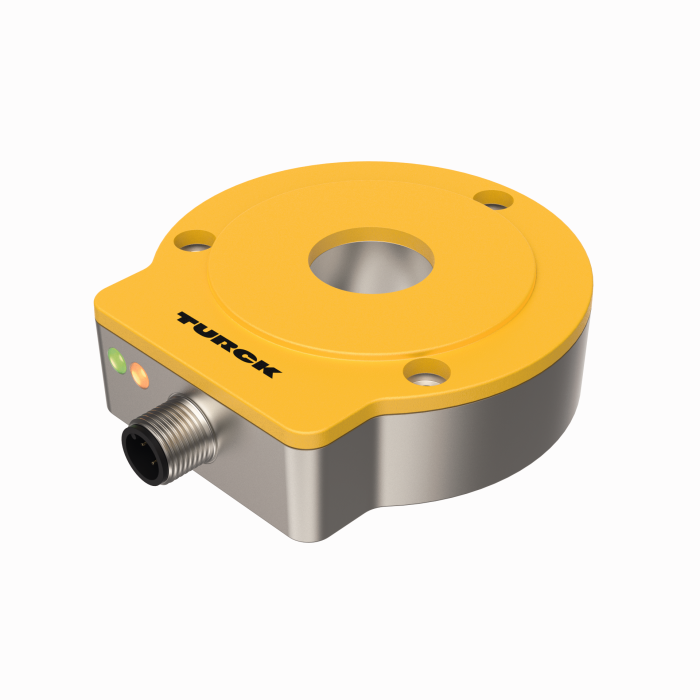

Contactless Encoder with ATEX Certificate — IO-Link, 3GD, Zone 2 (22) — Premium Line
The Turck Contactless Encoder with ATEX Certificate - IO-Link, 3GD, Zone 2 (22) # RI360P0-QR24M0-IOLX2-H1141/3GD is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101475463 |
| eCl@ss-Code (V5.1.4) | 27270501 -/- Encoder, absolute |
| Customs tariff number | 8537109170 |
| Country of origin | DE |
| Weight | 315 g |
| Encoder line | Premium-Line |
| Technology | Contactless |
| Output type | Absolute semi-multiturn |
| Shaft Type | Hollow shaft |
| Shaft diameter D (mm) | 6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20 |
| Construction size | 81 x 78 x 24 mm |
| Flange type | Flange without mounting element |
| Measuring range | 0…360° |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal/plastic, ZnAlCu1/PBT-GF30-V0 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP68/IP69K |
| Approvals | ATEX II 3 D, ATEX II 3 G |
