Contactless Encoder — Incremental — Premium Line

Compact, rugged housing
Many mounting possibilities
Status displayed via LED
Measuring range displayed via LED
Immune to electromagnetic interference
32 pulses per revolution (default)
360, 512, 1000, 1024, 2048, 2500, 3600, 4096, 5000, parameterizable via Easy-Teach
Free parametrization of the pulse count in the range from 1 to 5000 via PACTware
Position of z-track can be set via Easy-Teach
Burst function, absolute angular position output incrementally via Easy-Teach pulse
Max. output frequency: 200 kHz
10…30 VDC
Male M12 x 1, 8-pin
Push-pull A, B, Z, A (inverse), B (inverse)

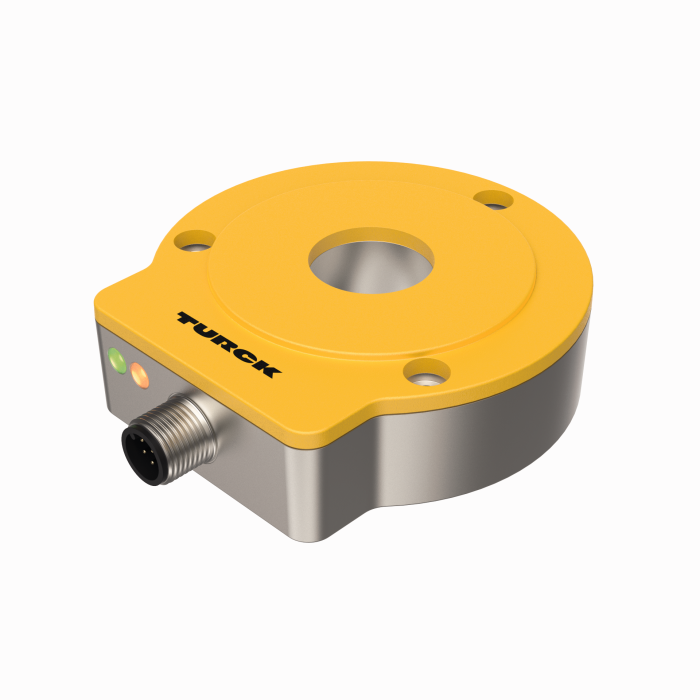

The Turck Contactless Encoder - Incremental # RI360P0-QR24M0-INCRX2-H1181/0032 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

Contactless Encoder — Incremental — Premium Line

Compact, rugged housing
Many mounting possibilities
Status displayed via LED
Measuring range displayed via LED
Immune to electromagnetic interference
32 pulses per revolution (default)
360, 512, 1000, 1024, 2048, 2500, 3600, 4096, 5000, parameterizable via Easy-Teach
Free parametrization of the pulse count in the range from 1 to 5000 via PACTware
Position of z-track can be set via Easy-Teach
Burst function, absolute angular position output incrementally via Easy-Teach pulse
Max. output frequency: 200 kHz
10…30 VDC
Male M12 x 1, 8-pin
Push-pull A, B, Z, A (inverse), B (inverse)

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

eCl@ss-Code (V5.1.4)	27270502 -/- Encoder, incremental
Customs tariff number	9032896040
Country of origin	DE
Weight	361 g
Encoder line	Premium-Line
Technology	Contactless
Output type	Incremental
Shaft Type	Hollow shaft
Shaft diameter D (mm)	6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20
Construction size	81 x 78 x 24 mm
Flange type	Flange without mounting element
Resolution, incremental	32 ppr
Operating voltage	10…30 VDC
Output function	Push-Pull/HTL
Electrical connection	Connector, M12 × 1
Housing material	Metal/plastic, ZnAlCu1/PBT-GF30-V0
Ambient temperature	-25…+85 °C
Protection class	IP68/IP69K

eCl@ss-Code (V5.1.4)	27270502 -/- Encoder, incremental
Customs tariff number	9032896040
Country of origin	DE
Weight	361 g
Encoder line	Premium-Line
Technology	Contactless
Output type	Incremental
Shaft Type	Hollow shaft
Shaft diameter D (mm)	6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20
Construction size	81 x 78 x 24 mm
Flange type	Flange without mounting element
Resolution, incremental	32 ppr
Operating voltage	10…30 VDC
Output function	Push-Pull/HTL
Electrical connection	Connector, M12 × 1
Housing material	Metal/plastic, ZnAlCu1/PBT-GF30-V0
Ambient temperature	-25…+85 °C
Protection class	IP68/IP69K
