SKU: RI-12I15E1-4A5000-H1181

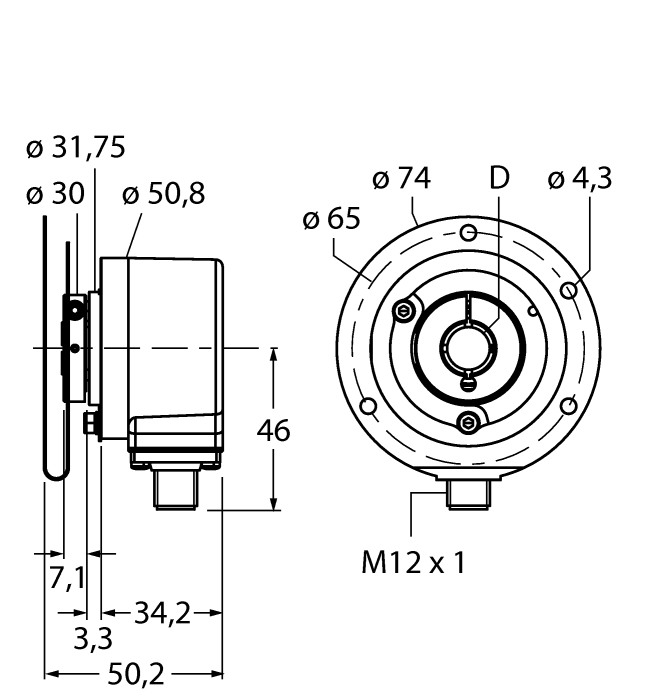

Ø 65 mm · Flange with mounting element · Hollow shaft · Connector
List price. Volume pricing available.
Incremental Hollow Shaft Rotary Encoder — Industrial Line
The Turck Incremental Hollow Shaft Rotary Encoder # RI-12I15E1-4A5000-H1181 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270502 -/- Encoder, incremental |
| Encoder line | Industrial-Line |
| Technology | Optical |
| Output type | Incremental |
| Shaft Type | Hollow shaft |
| Shaft diameter D (mm) | 15 |
| Shaft diameter D | 0.59 in |
| Flange diameter | Ø 65 mm |
| Flange type | Flange with mounting element |
| Resolution, incremental | 5000 ppr |
| Output function | RS422, with inverted signals |
| Electrical connection | Connector |
| Housing material | Aluminium |
| Ambient temperature | -40…+85 °C |
| Protection class housing | IP65 |
| Protection class shaft | IP65 |
| Protection class | IP65 |
