SKU: RI-12H12T-2B1024-C 1M

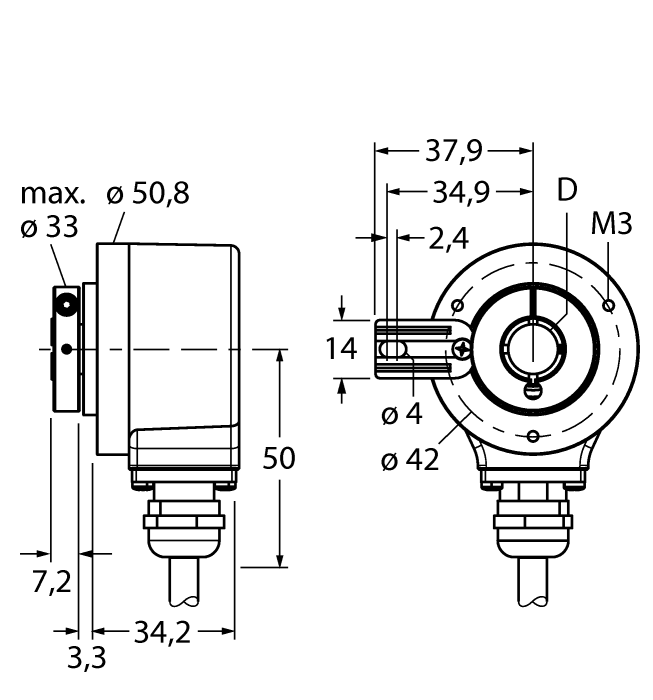

Ø 50.8 mm · Flange with mounting element · Hollow shaft · Cable
List price. Volume pricing available.
Incremental Encoder — Industrial Line
The Turck Incremental Encoder # RI-12H12T-2B1024-C 1M is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101262650 |
| eCl@ss-Code (V5.1.4) | 27270502 -/- Encoder, incremental |
| Customs tariff number | 9031804000 |
| Country of origin | DE |
| Weight | 400 g |
| Encoder line | Industrial-Line |
| Technology | Optical |
| Output type | Incremental |
| Shaft Type | Hollow shaft |
| Shaft diameter D (mm) | 12 |
| Flange diameter | Ø 50.8 mm |
| Flange type | Flange with mounting element |
| Resolution, incremental | 1024 ppr |
| Operating voltage | 10…30 VDC |
| Output function | Push-Pull/HTL, with inverted signals |
| Electrical connection | Cable |
| Housing material | Die-cast zinc |
| Ambient temperature | -30…+85 °C |
| Protection class shaft | IP67 |
| Protection class | IP67 |
