SKU: RI-12H10S1-4A1024-12M23
Flange with mounting element · Hollow shaft · Connector
List price. Volume pricing available.

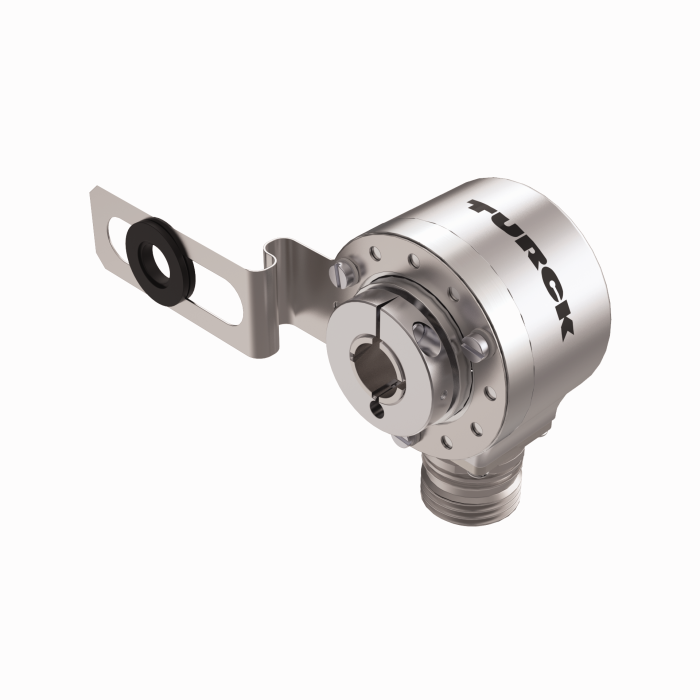

Incremental Hollow Shaft Rotary Encoder — Industrial Line
The Turck Incremental Hollow Shaft Rotary Encoder # RI-12H10S1-4A1024-12M23 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270502 -/- Encoder, incremental |
| Customs tariff number | 9029108000 |
| Weight | 204.26 g |
| Encoder line | Industrial-Line |
| Technology | Optical |
| Output type | Incremental |
| Shaft Type | Hollow shaft |
| Shaft diameter D (mm) | 10 |
| Shaft diameter D | 0.394 in |
| Flange type | Flange with mounting element |
| Resolution, incremental | 1024 ppr |
| Output function | RS422, with inverted signals |
| Electrical connection | Connector |
| Housing material | Die-cast zinc |
| Ambient temperature | -40…+85 °C |
| Protection class shaft | IP67 |
| Protection class | IP67 |
