SKU: RI-10T10C-4B5000-H1481
Ø 58 mm · Clamping flange · Solid shaft · Connector, M12 × 1
List price. Volume pricing available.

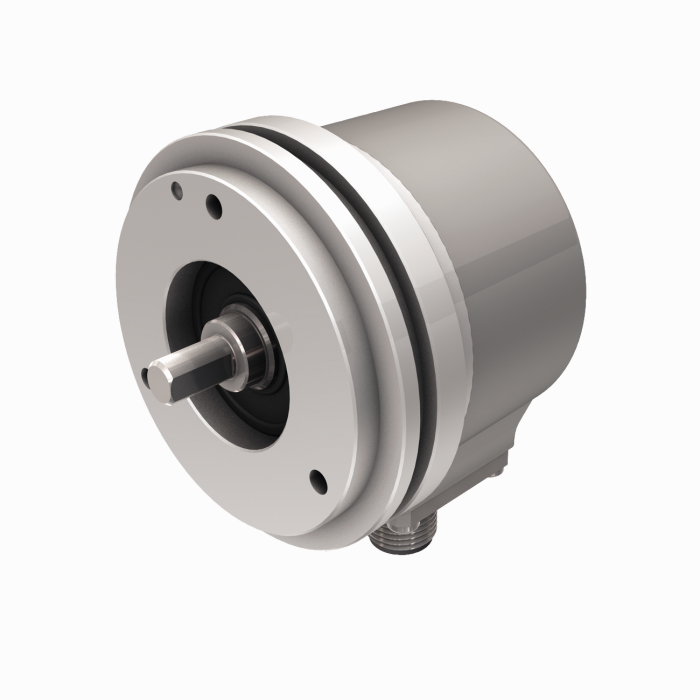

Incremental Shaft Encoder — Industrial Line
The Turck Incremental Shaft Encoder # RI-10T10C-4B5000-H1481 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270502 -/- Encoder, incremental |
| Encoder line | Industrial-Line |
| Technology | Optical |
| Output type | Incremental |
| Shaft Type | Solid shaft |
| Shaft diameter D (mm) | 10 |
| Shaft diameter D | 0 in |
| Flange diameter | Ø 58 mm |
| Flange type | Clamping flange |
| Resolution, incremental | 5000 ppr |
| Operating voltage | 5…30 VDC |
| Output function | RS422/TTL, with inverted signals |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Die-cast zinc |
| Ambient temperature | -40…+85 °C |
| Protection class housing | IP65 |
| Protection class shaft | IP65 |
| Protection class | IP67 |
