SKU: RI-02C6S3-2D1000-C

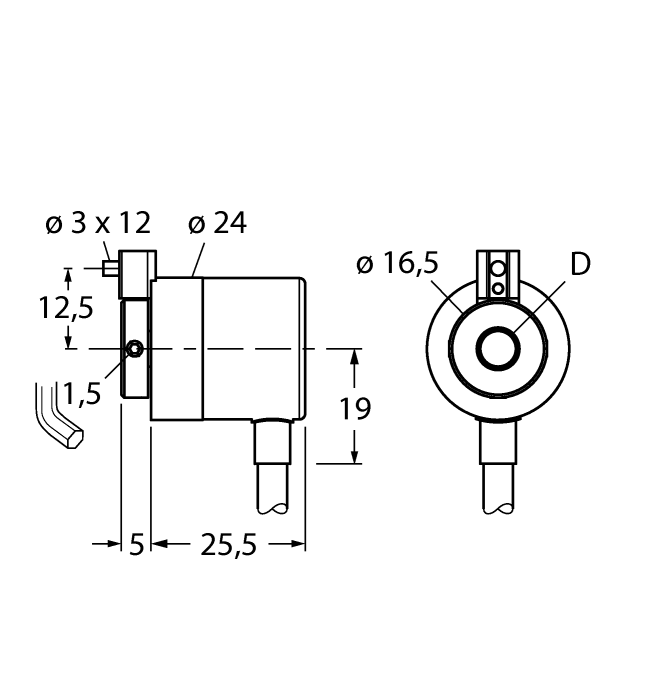

Ø 24 mm · Flange with torque stop · Blind hole shaft · Cable
List price. Volume pricing available.
Incremental Encoder — Industrial Line
The Turck Incremental Encoder # RI-02C6S3-2D1000-C is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270502 -/- Encoder, incremental |
| Customs tariff number | 9029108000 |
| Weight | 1100 g |
| Encoder line | Industrial-Line |
| Technology | Accessories conventional encoder |
| Output type | Incremental |
| Shaft Type | Blind hole shaft |
| Shaft diameter D (mm) | 6 |
| Flange diameter | Ø 24 mm |
| Flange type | Flange with torque stop |
| Resolution, incremental | 1000 ppr |
| Operating voltage | 5…24 VDC |
| Output function | Push-Pull/HTL, with inverted signals |
| Electrical connection | Cable |
| Housing material | Aluminium |
| Ambient temperature | -20…+85 °C |
| Protection class housing | IP64 |
| Protection class shaft | IP50 |
