SKU: REI-E-113T12C-2B2500-H1181
Ø 58 mm · Clamping flange · Solid shaft · Connector, M12 × 1
List price. Volume pricing available.

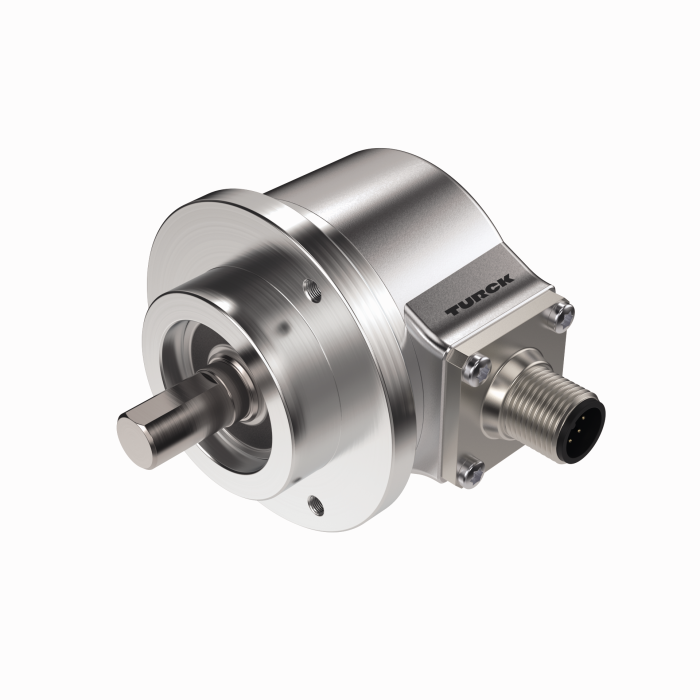

Incremental Encoder — Efficiency Line
The Turck Incremental Encoder # REI-E-113T12C-2B2500-H1181 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101546620 |
| eCl@ss-Code (V5.1.4) | 27270502 -/- Encoder, incremental |
| Customs tariff number | 9031499000 |
| Country of origin | IN |
| Weight | 400 g |
| Encoder line | Efficiency-Line |
| Technology | Optical |
| Output type | Incremental |
| Shaft Type | Solid shaft |
| Shaft diameter D (mm) | 12 |
| Flange diameter | Ø 58 mm |
| Flange type | Clamping flange |
| Resolution, incremental | 2500 ppr |
| Operating voltage | 10…30 VDC |
| Output function | Push-Pull/HTL, with inverted signals |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Die-cast zinc |
| Ambient temperature | -20…+70 °C |
| Protection class shaft | IP64 |
| Protection class | IP64 |
