SKU: REI-E-112IA0T-2B2500-C

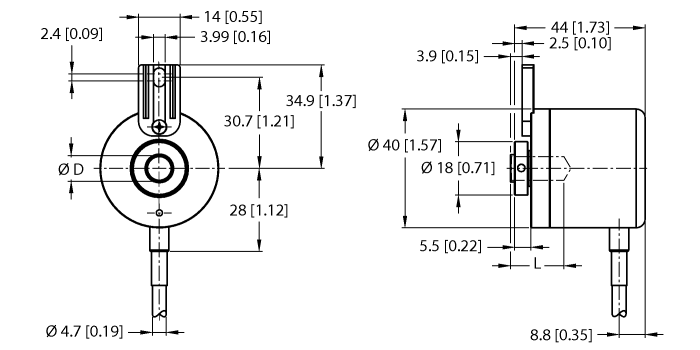

Ø 40 mm · Flange with mounting element · Blind hole shaft · Cable
List price. Volume pricing available.
Incremental Encoder — Efficiency Line
The Turck Incremental Encoder # REI-E-112IA0T-2B2500-C is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101545753 |
| eCl@ss-Code (V5.1.4) | 27270502 -/- Encoder, incremental |
| Customs tariff number | 9031499000 |
| Country of origin | IN |
| Weight | 170 g |
| Encoder line | Efficiency-Line |
| Technology | Optical |
| Output type | Incremental |
| Shaft Type | Blind hole shaft |
| Shaft diameter D (mm) | 6.35 |
| Flange diameter | Ø 40 mm |
| Flange type | Flange with mounting element |
| Resolution, incremental | 2500 ppr |
| Operating voltage | 10…30 VDC |
| Output function | Push-Pull/HTL, with inverted signals |
| Electrical connection | Cable |
| Housing material | Aluminium |
| Ambient temperature | -20…+70 °C |
| Protection class shaft | IP64 |
| Protection class | IP64 |
