Trip amplifier — 1-channel

Monitors 3 limit values at a current or voltage input
Power supply of 2-wire or 3-wire transmitters/sensors
Input circuit: 0/4…20 mA; 0/2…10 V
Output circuit: 3 independent limit value relays
Limit value relay adjusted via TEACH button
Relay outputs adjusted via buttons on the front
Universal operating voltage
Complete galvanic isolation
Input reverse-polarity protected
CFMUS, TR CU

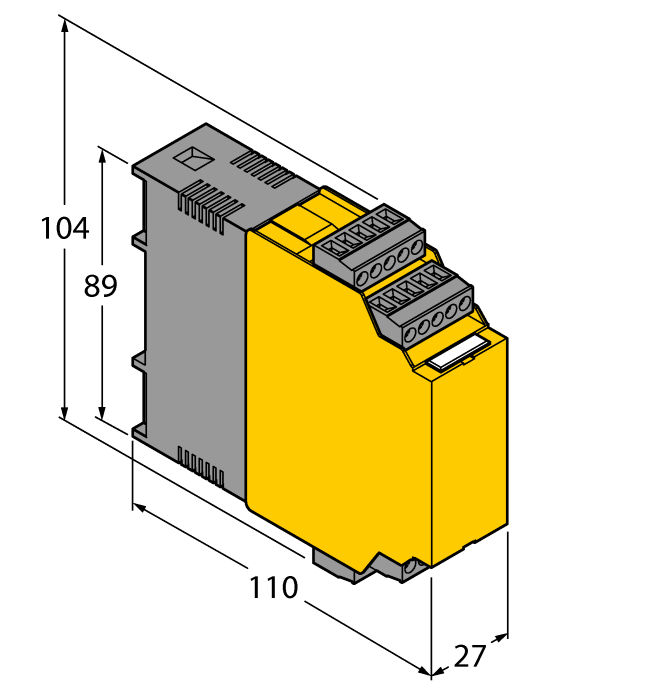

The Turck Trip amplifier - 1-channel # IM43-13-SR is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

Trip amplifier — 1-channel

Monitors 3 limit values at a current or voltage input
Power supply of 2-wire or 3-wire transmitters/sensors
Input circuit: 0/4…20 mA; 0/2…10 V
Output circuit: 3 independent limit value relays
Limit value relay adjusted via TEACH button
Relay outputs adjusted via buttons on the front
Universal operating voltage
Complete galvanic isolation
Input reverse-polarity protected
CFMUS, TR CU

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

EAN	4047101119091
eCl@ss-Code (V5.1.4)	27210122 -/- Limit switch
Customs tariff number	8536698000
Country of origin	CN
Weight	175 g
Signal type	Analog input
Device type	Trip amplifier
Ex version	no
Approvals	cFMus, TR CU
Nominal voltage	Wide voltage range
Number of channels	1
Digital output	Relay output
Electrical connection	4 × 5-pin removable terminal blocks, reverse polarity protected, screw terminal
Protection class	IP20
Product series	IM

EAN	4047101119091
eCl@ss-Code (V5.1.4)	27210122 -/- Limit switch
Customs tariff number	8536698000
Country of origin	CN
Weight	175 g
Signal type	Analog input
Device type	Trip amplifier
Ex version	no
Approvals	cFMus, TR CU
Nominal voltage	Wide voltage range
Number of channels	1
Digital output	Relay output
Electrical connection	4 × 5-pin removable terminal blocks, reverse polarity protected, screw terminal
Protection class	IP20
Product series	IM
