SKU: DR15S-M30E-2UPN8X2-H1141
350…15000 mm · M30 x 1.5 · 15° · PNP/NPN
List price. Volume pricing available.

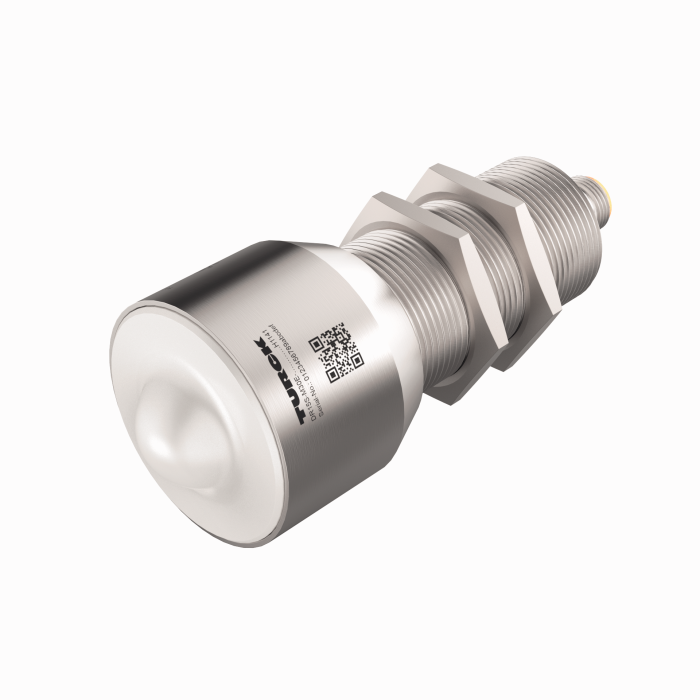

Radar Sensor — Distance/Object Detection
The Turck Radar Sensor - Distance/Object Detection # DR15S-M30E-2UPN8X2-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101557329 |
| eCl@ss-Code (V5.1.4) | 27200505 -/- Radar level measurement |
| Customs tariff number | 9026204000 |
| Country of origin | DE |
| Weight | 320 g |
| Function | Radar scanner |
| Design | Threaded barrel |
| Construction size | M30 x 1.5 |
| Range | 350…15000 mm |
| Frequency range | 122 - 123 GHz |
| Beam angle | 15° |
| Operating voltage | 18…33 VDC |
| Switching element function | NO/NC programmable |
| Output function | PNP/NPN |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless steel, 1.4401 (AISI 316) PTFE |
| Ambient temperature | -25…+65 °C |
| Protection class | IP67/IP69K |
