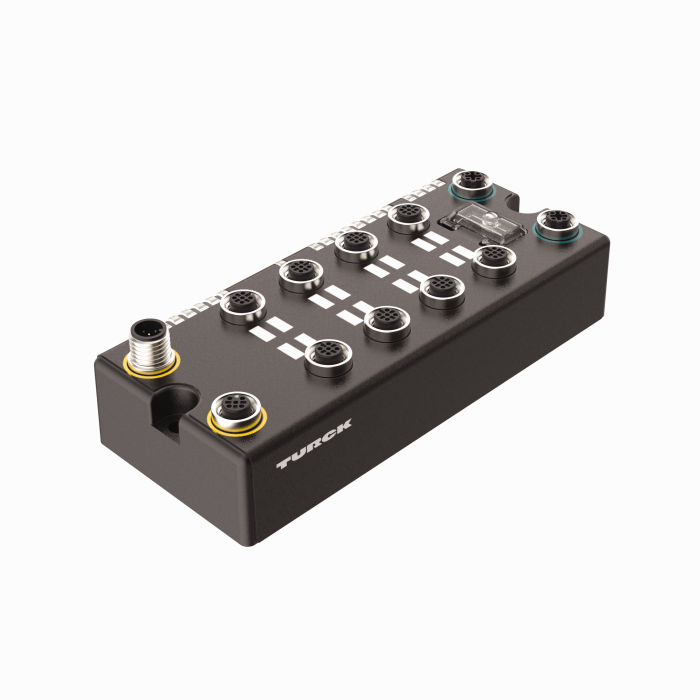

BL compact multiprotocol fieldbus station for Industrial Ethernet - 16 Digital NPN Inputs

Name: Valley Instrument Service
Address: 3536 Brian Way, Bakersfield, CA, 93308, US
Telephone: (661) 327-8681

SKU: BLCEN-8M12LT-8DI-N-8DI-N

I/O Module, Compact station, Field Logic Controller (ARGEE) · Analog output · M12

$712.90

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

BL compact multiprotocol fieldbus station for Industrial Ethernet — 16 Digital NPN Inputs

On-machine Compact fieldbus I/O block
EtherNet/IP, Modbus TCP, or PROFINET slave
Integrated Ethernet Switch
10 Mbps / 100 Mbps supported
Two 4-pole M12, D-coded, connectors for fieldbus connection
2 rotary switches for node address
IP67, IP69K
M12 I/O connectors
LEDs indicating status and diagnostics
Electronics galvanically separated from the field level via optocouplers
16 digital NPN inputs, 24 VDC

The Turck BL compact multiprotocol fieldbus station for Industrial Ethernet - 16 Digital NPN Inputs # BLCEN-8M12LT-8DI-N-8DI-N is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

BL compact multiprotocol fieldbus station for Industrial Ethernet - 16 Digital NPN Inputs

SKU: BLCEN-8M12LT-8DI-N-8DI-N

I/O Module, Compact station, Field Logic Controller (ARGEE) · Analog output · M12

$712.90

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

BL compact multiprotocol fieldbus station for Industrial Ethernet — 16 Digital NPN Inputs

On-machine Compact fieldbus I/O block
EtherNet/IP, Modbus TCP, or PROFINET slave
Integrated Ethernet Switch
10 Mbps / 100 Mbps supported
Two 4-pole M12, D-coded, connectors for fieldbus connection
2 rotary switches for node address
IP67, IP69K
M12 I/O connectors
LEDs indicating status and diagnostics
Electronics galvanically separated from the field level via optocouplers
16 digital NPN inputs, 24 VDC

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

eCl@ss-Code (V5.1.4)	27250313 -/- Communication interface, passive
Customs tariff number	8536908530
Weight	633.22 g
Fieldbus Protocol	Modbus TCP, EtherNet/IP, PROFINET
Signal type	Analog output
Connection technology signal	M12
Device type	I/O Module, Compact station, Field Logic Controller (ARGEE)
Fieldbus transmission rate	10/100 Mbps
Fieldbus connection technology	2 × M12
Ambient temperature	-40…+70 °C
Protection class	IP67/IP69K

eCl@ss-Code (V5.1.4)	27250313 -/- Communication interface, passive
Customs tariff number	8536908530
Weight	633.22 g
Fieldbus Protocol	Modbus TCP, EtherNet/IP, PROFINET
Signal type	Analog output
Connection technology signal	M12
Device type	I/O Module, Compact station, Field Logic Controller (ARGEE)
Fieldbus transmission rate	10/100 Mbps
Fieldbus connection technology	2 × M12
Ambient temperature	-40…+70 °C
Protection class	IP67/IP69K
