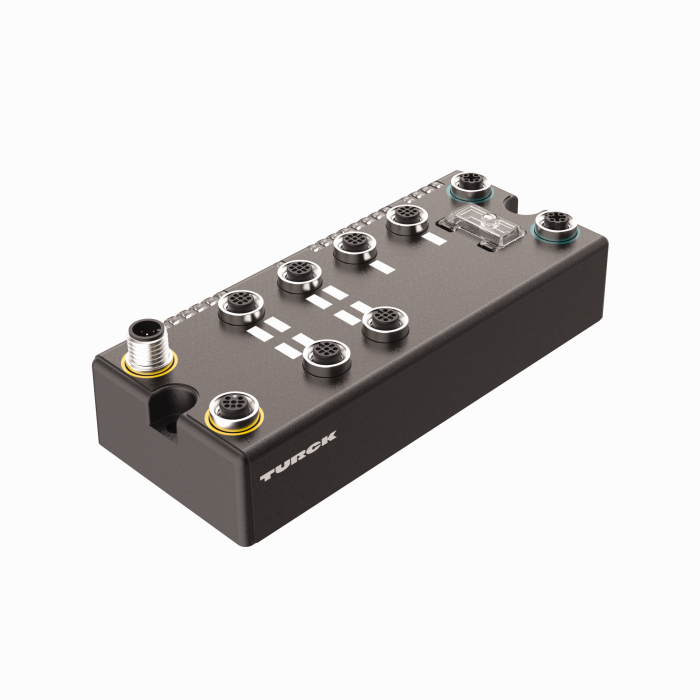

BL compact multiprotocol fieldbus station for Industrial Ethernet - 2 Analog Outputs for Current and 8 Configurable Digital PNP Channels

BL compact multiprotocol fieldbus station for Industrial Ethernet — 2 Analog Outputs for Current and 8 Configurable Digital PNP Channels

• On-machine Compact fieldbus I/O block
• EtherNet/IP, Modbus TCP, or PROFINET slave
• Integrated Ethernet Switch
• 10 Mbps / 100 Mbps supported
• Two 4-pole M12, D-coded, connectors for fieldbus connection
• 2 rotary switches for node address
• IP67, IP69K
• M12 I/O connectors
• LEDs indicating status and diagnostics
• Electronics galvanically separated from the field level via optocouplers
• 8 Configurable digital PNP channels, 24 VDC
• Max. 0.5A per channel
• Selection of filtering times (Input delay)
• Invertible inputs
• 2 analog current outputs
• 0/4…20 mA

The Turck BL compact multiprotocol fieldbus station for Industrial Ethernet - 2 Analog Outputs for Current and 8 Configurable Digital PNP Channels # BLCEN-6M12LT-2AO-I-8XSG-P is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
