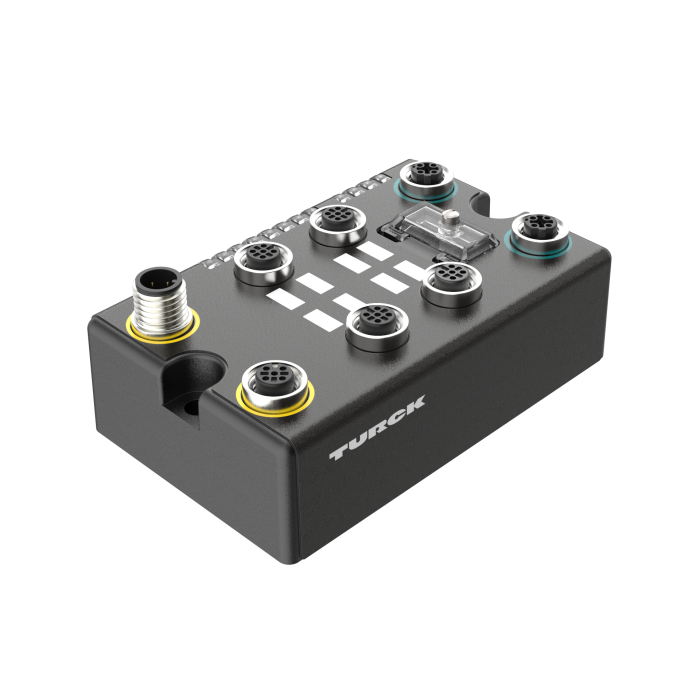

BL Compact Fieldbus Station for EtherCAT - 4 Analog Inputs for Current or Voltage and 4 Analog Outputs for Voltage

BL Compact Fieldbus Station for EtherCAT — 4 Analog Inputs for Current or Voltage and 4 Analog Outputs for Voltage

• On-machine Compact fieldbus I/O block
• EtherCAT slave
• Integrated Ethernet Switch
• Two 4-pole M12, D-coded, connectors for fieldbus connection
• Auto and Fixed addressing
• IP67, IP69K
• M12 I/O connectors
• LEDs indicating status and diagnostics
• Electronics galvanically separated from the field level via optocouplers
• 4 analog inputs for current or voltage
• 0/4…20 mA or -10/0…+10 VDC (selectable per channel)
• 4 analog voltage outputs
• -10/0…+10 VDC

The Turck BL Compact Fieldbus Station for EtherCAT - 4 Analog Inputs for Current or Voltage and 4 Analog Outputs for Voltage # BLCEC-4M12MT-4AI4AO-VI is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
