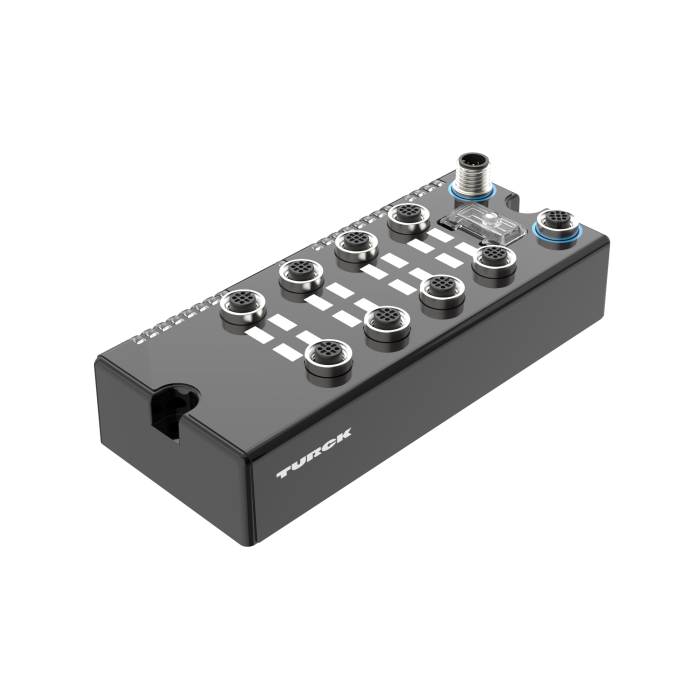

BL compact fieldbus station for DeviceNet - 4 Analog Inputs for Current or Voltage and 8 Configurable Digital PNP Channels

BL compact fieldbus station for DeviceNet — 4 Analog Inputs for Current or Voltage and 8 Configurable Digital PNP Channels

• On-machine Compact fieldbus I/O block
• DeviceNet slave
• 125 / 250 / 500 kbps
• Two 5-pole M12 connectors for fieldbus connection
• 2 rotary switches for node address
• IP67, IP69K
• M12 I/O connectors
• LEDs indicating status and diagnostics
• Electronics galvanically separated from the field level via optocouplers
• 8 Configurable digital PNP channels, 24 VDC
• Max. 0.5A per channel
• Channel diagnostics
• Selection of filtering times (Input delay)
• Invertible inputs
• 4 analog inputs for current or voltage
• 0/4…20 mA or -10/0…+10 VDC (selectable per channel)

The Turck BL compact fieldbus station for DeviceNet - 4 Analog Inputs for Current or Voltage and 8 Configurable Digital PNP Channels # BLCDN-8M12L-4AI-VI-8XSG-PD is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
