SKU: BIM-UNR-2AP6X-0.2-RSC4.4T
18 x 2.9 x 4.6 mm, UNR · NO contact, PNP · Cable with connector, M12 × 1 · 11…30 VDC
List price. Volume pricing available.
Magnetic Field Sensor — For Pneumatic Cylinders
The Turck Magnetic Field Sensor - For Pneumatic Cylinders # BIM-UNR-2AP6X-0.2-RSC4.4T is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101702071 |
| eCl@ss-Code (V5.1.4) | 27270104 -/- Magnetic inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | CH |
| Weight | 17.48 g |
| Design | Rectangular |

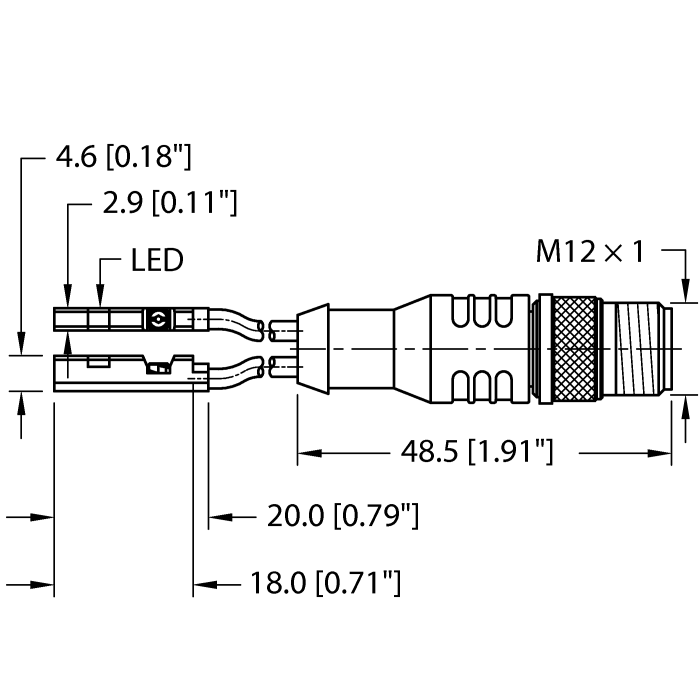

| Construction size | 18 x 2.9 x 4.6 mm, UNR |
| Cylindrical design | C-groove cylinder |
| Operating voltage | 11…30 VDC |
| Output function | NO contact, PNP |
| Electrical connection | Cable with connector, M12 × 1 |
| Cable length (L) | 0.20 m |
| Housing material | Plastic, PP |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
