SKU: BIM-UNC-AN6X
22 x 4 x 4.6 mm, UNC · NO contact, NPN · Cable · 11…30 VDC
List price. Volume pricing available.

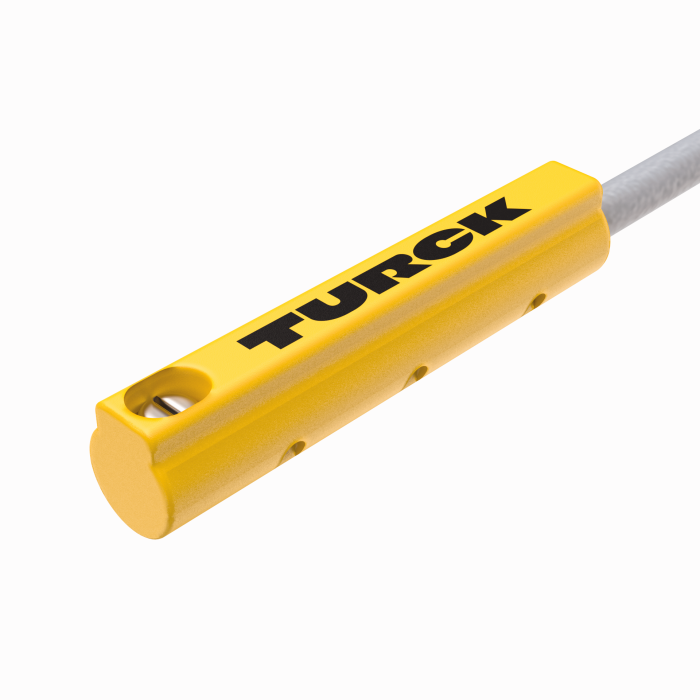

Magnetic Field Sensor — For Pneumatic Cylinders
The Turck Magnetic Field Sensor - For Pneumatic Cylinders # BIM-UNC-AN6X is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101475753 |
| eCl@ss-Code (V5.1.4) | 27270104 -/- Magnetic inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | PL |
| Weight | 17 g |
| Design | Rectangular |
| Construction size | 22 x 4 x 4.6 mm, UNC |
| Cylindrical design | C-groove cylinder |
| Operating voltage | 11…30 VDC |
| Output function | NO contact, NPN |
| Electrical connection | Cable |
| Cable length (L) | 2.0 m |
| Housing material | Plastic, PP-GF20 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
