SKU: BIM-PSM-AN6X-V1131

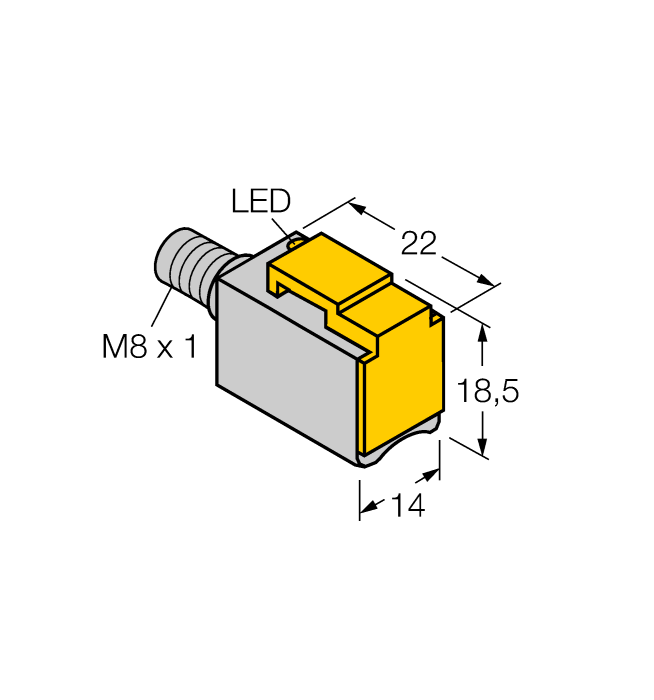

22 x 14 x 18.5 mm, PSM · NO contact, NPN · Connector, M8 × 1 · 10…30 VDC
List price. Volume pricing available.
Magnetic Field Sensor — For Pneumatic Cylinders
The Turck Magnetic Field Sensor - For Pneumatic Cylinders # BIM-PSM-AN6X-V1131 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101158045 |
| eCl@ss-Code (V5.1.4) | 27270104 -/- Magnetic inductive proximity switch |
| Customs tariff number | 8536504000 |
| Country of origin | DE |
| Weight | 15 g |
| Design | Rectangular |
| Construction size | 22 x 14 x 18.5 mm, PSM |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, NPN |
| Electrical connection | Connector, M8 × 1 |
| Housing material | Metal/plastic, Al/PA12-GF30 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
