SKU: BIM-INT-Y1X 7M

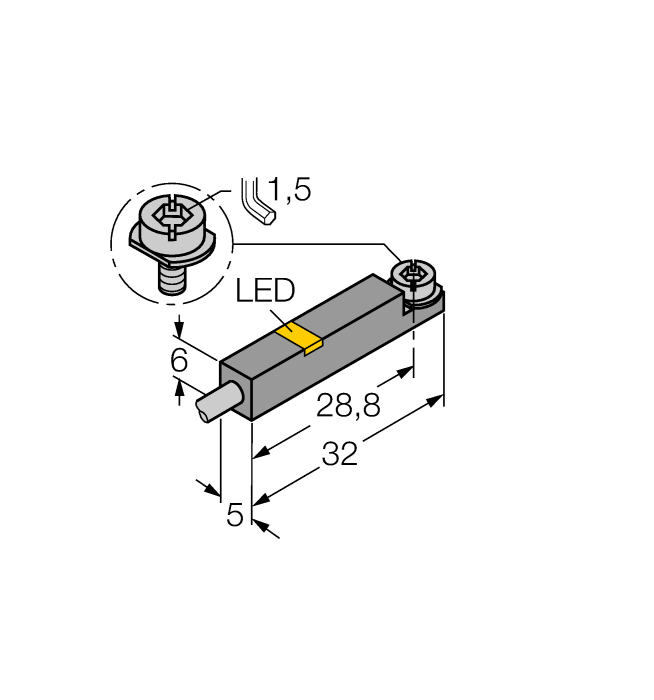

32 x 5 x 6 mm, INT · NAMUR · Cable · Nom. 8.2 VDC
List price. Volume pricing available.
Magnetic Field Sensor — For Pneumatic Cylinders
The Turck Magnetic Field Sensor - For Pneumatic Cylinders # BIM-INT-Y1X 7M is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101145465 |
| eCl@ss-Code (V5.1.4) | 27270104 -/- Magnetic inductive proximity switch |
| Customs tariff number | 8536504000 |
| Country of origin | DE |
| Weight | 93 g |
| Design | Rectangular |
| Construction size | 32 x 5 x 6 mm, INT |
| Cylindrical design | Tie-rod cylinder, Tie-rod cylinder, Cylinder with external dovetail groove |
| Operating voltage | Nom. 8.2 VDC |
| Output function | NAMUR |
| Electrical connection | Cable |
| Cable length (L) | 7.0 m |
| Housing material | Plastic, PP |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Approvals | ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc |
