SKU: BIM-IKM-AD4X-H1144/S34
34 x 17 x 34 mm, IKM · NO contact, 2-wire · Connector, M12 × 1 · 10…65 VDC
List price. Volume pricing available.

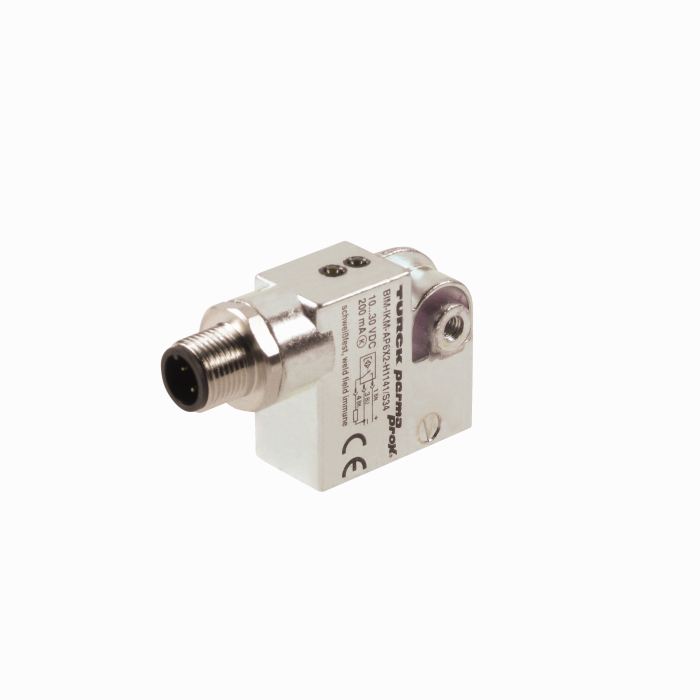

Magnetic Field Sensor — for pneumatic cylinders (magnetic-field immune)
The Turck Magnetic Field Sensor - for pneumatic cylinders (magnetic-field immune) # BIM-IKM-AD4X-H1144/S34 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101000382 |
| eCl@ss-Code (V5.1.4) | 27270104 -/- Magnetic inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | PL |
| Weight | 74 g |
| Design | Rectangular |
| Construction size | 34 x 17 x 34 mm, IKM |
| Cylindrical design | Tie-rod cylinder, Profile cylinder, Cylinder with external dovetail groove |
| Operating voltage | 10…65 VDC |
| Output function | NO contact, 2-wire |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, GD-Zn |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Special features | Resistant to magnetic fields |
