SKU: BIM-EG08-AP6X-0.2-PSG3M
M8 x 1 · NO contact, PNP · Cable with connector, M8 × 1 · 10…30 VDC
List price. Volume pricing available.

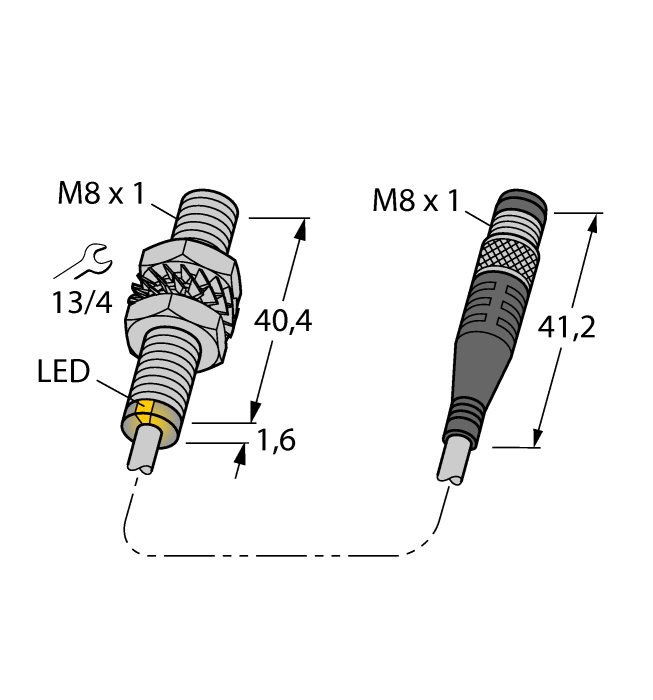

Magnetic Field Sensor — Magnetic-inductive Proximity Sensor
The Turck Magnetic Field Sensor - Magnetic-inductive Proximity Sensor # BIM-EG08-AP6X-0.2-PSG3M is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270104 -/- Magnetic inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | CH |
| Weight | 22.92 g |
| Design | Threaded barrel |
| Construction size | M8 x 1 |
| Rated switching distance | 78 mm |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, PNP |
| Electrical connection | Cable with connector, M8 × 1 |
| Cable length (L) | 0.20 m |
| Housing material | Stainless steel, 1.4427 SO |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Special features | Magnetic-inductive |
