Magnetic Field Sensor - For Pneumatic Cylinders

Magnetic Field Sensor — For Pneumatic Cylinders

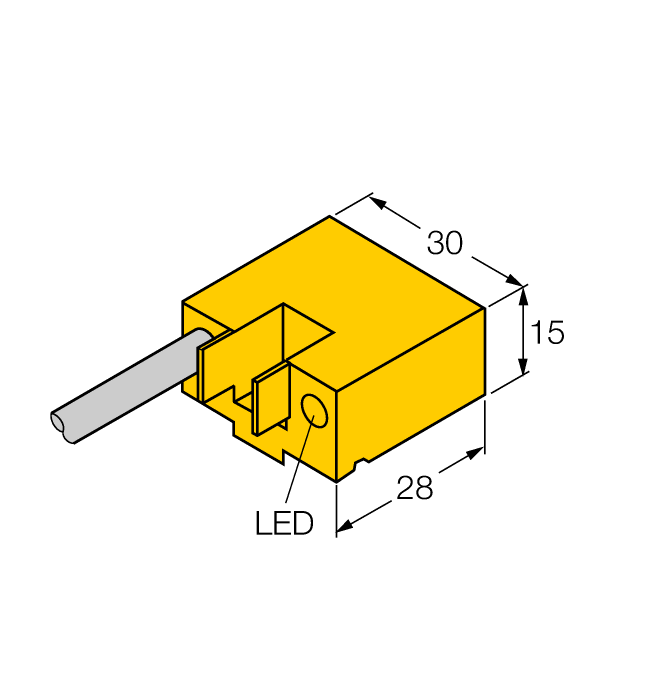

• Rectangular, height 15 mm
• Concentric active face
• Plastic, PA12‐GF30
• Magnetic-inductive sensor
• DC 2-wire, nom. 8.2 VDC
• Output acc. to EN 60947-5-6 (NAMUR)
• Cable connection
• ATEX category II 2 G, Ex Zone 1
• ATEX category II 1 D, Ex Zone 20
• SIL 2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0
• SIL 3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1

The Turck Magnetic Field Sensor - For Pneumatic Cylinders # BIM-AKT-Y1X W/KLA1 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
