SKU: BI30R-Q20-AN6X2-H1141

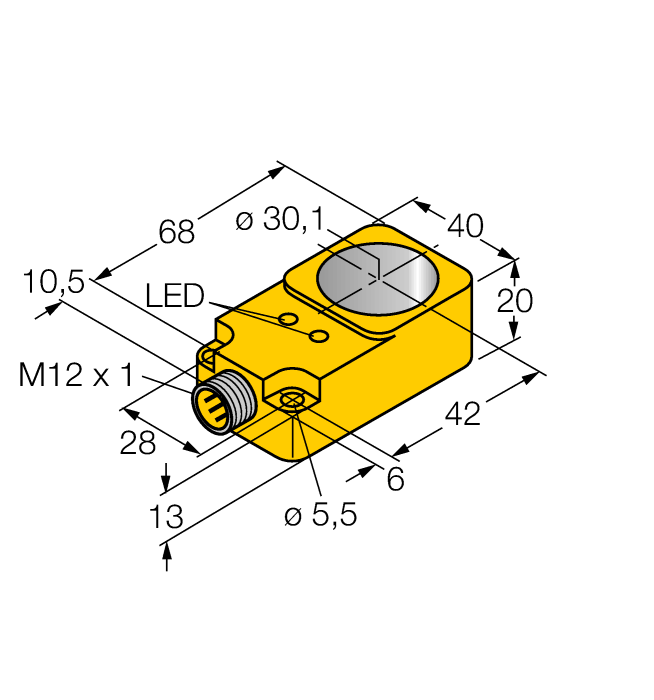

68 x 40 x 20 mm, Q20 · Connector, M12 × 1
List price. Volume pricing available.
Inductive Sensor — Ring Sensor
The Turck Inductive Sensor - Ring Sensor # BI30R-Q20-AN6X2-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101068979 |
| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8538908180 |
| Country of origin | DE |
| Weight | 66 g |
| Design | Ring sensor |
| Construction size | 68 x 40 x 20 mm, Q20 |
| Inside ring diameter D | 30.1 mm |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, NPN |
| Switching frequency | 0.0080 kHz |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PBT-GF30-V0 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP65 |
| Special features | Ring sensor, static output |
