SKU: BI22-Q20-RP6X2/S400-S946

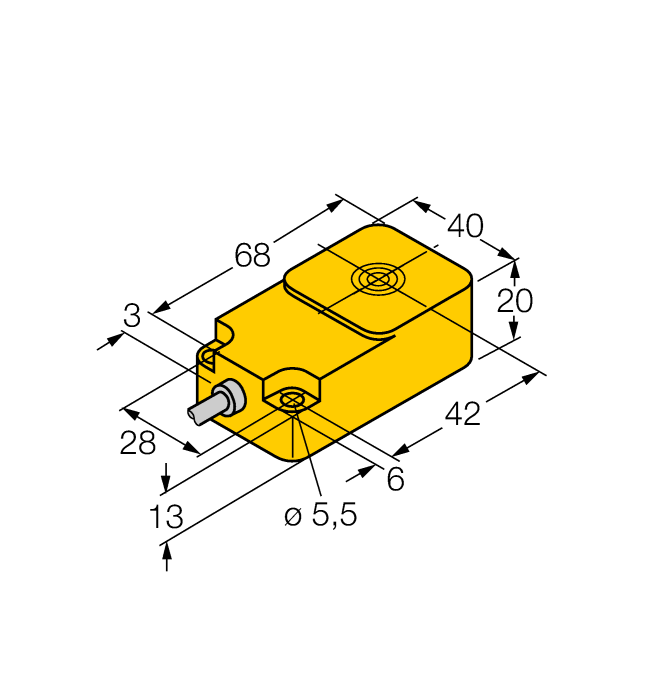

68 x 40 x 20 mm, Q20 · 22 mm · Flush · Cable
List price. Volume pricing available.
Inductive Sensor — With Extended Temperature Range
The Turck Inductive Sensor - With Extended Temperature Range # BI22-Q20-RP6X2/S400-S946 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101229813 |
| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536504000 |
| Country of origin | CH |
| Weight | 209 g |
| Design | Rectangular |
| Construction size | 68 x 40 x 20 mm, Q20 |
| Rated switching distance | 22 mm |
| Mounting | Flush |
| Operating voltage | 10…30 VDC |
| Output function | NC contact, PNP |
| Switching frequency | 0.250 kHz |
| Electrical connection | Cable |
| Cable length (L) | 3.0 m |
| Housing material | Plastic, PBT-GF30-V0, Yellow |
| Ambient temperature | -40…+70 °C |
| Protection class | IP67 |
