SKU: BI20U-CA40-AP6X2-H1141/S1590 W/BS2.1
65 x 40 x 40 mm, CA40 · 20 mm · Flush · Connector, M12 × 1
List price. Volume pricing available.

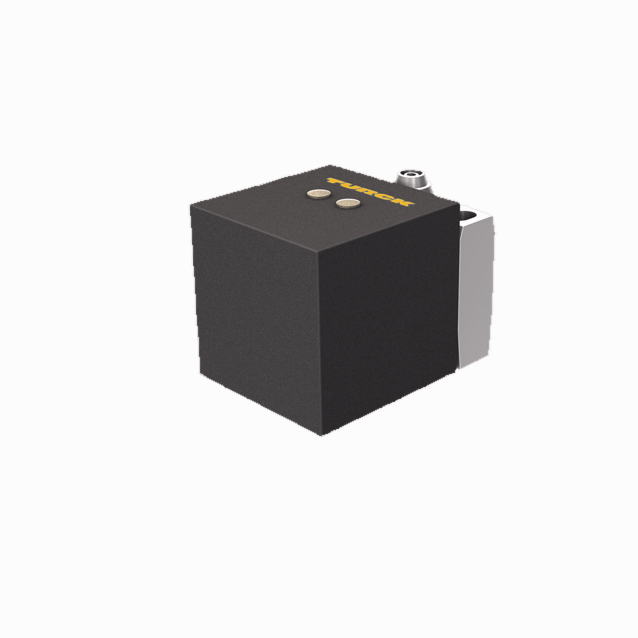

Inductive Sensor — With WeldGuard Coating
The Turck Inductive Sensor - With WeldGuard Coating # BI20U-CA40-AP6X2-H1141/S1590 W/BS2.1 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101319026 |
| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | DE |
| Weight | 198 g |
| Design | Rectangular |
| Construction size | 65 x 40 x 40 mm, CA40 |
| Rated switching distance | 20 mm |
| Mounting | Flush |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, PNP |
| Switching frequency | 0.250 kHz |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, GD-AlSi 12 |
| Ambient temperature | 0…+70 °C |
| Protection class | IP67 |
| Special features | uprox+, weldguard |
