SKU: BI2-Q4.7-AP6X/S100
16 x 8 x 4.7 mm, Q4.7 · 2 mm · Flush · Cable
List price. Volume pricing available.

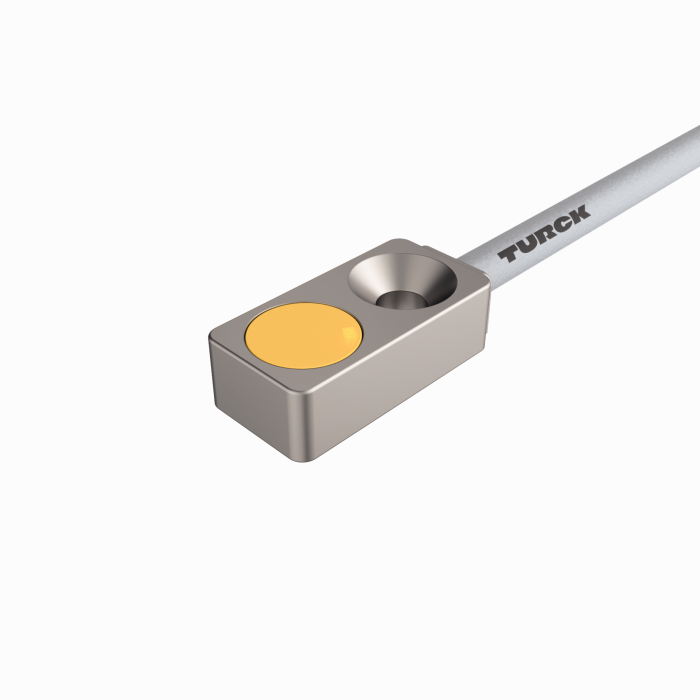

Inductive Sensor — With Increased Temperature Range
The Turck Inductive Sensor - With Increased Temperature Range # BI2-Q4.7-AP6X/S100 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101462074 |
| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536504000 |
| Country of origin | DE |
| Weight | 31.77 g |
| Design | Rectangular |
| Construction size | 16 x 8 x 4.7 mm, Q4.7 |
| Rated switching distance | 2 mm |
| Mounting | Flush |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, PNP |
| Switching frequency | 1.0 kHz |
| Electrical connection | Cable |
| Housing material | Metal, GD-ZnAl |
| Ambient temperature | 0…+100 °C |
| Protection class | IP67 |
