SKU: BI2-EG08-AG41X-0.3-RS4.23T/S1589
M8 x 1 · 2 mm · Flush · Cable with connector, M12 × 1
List price. Volume pricing available.

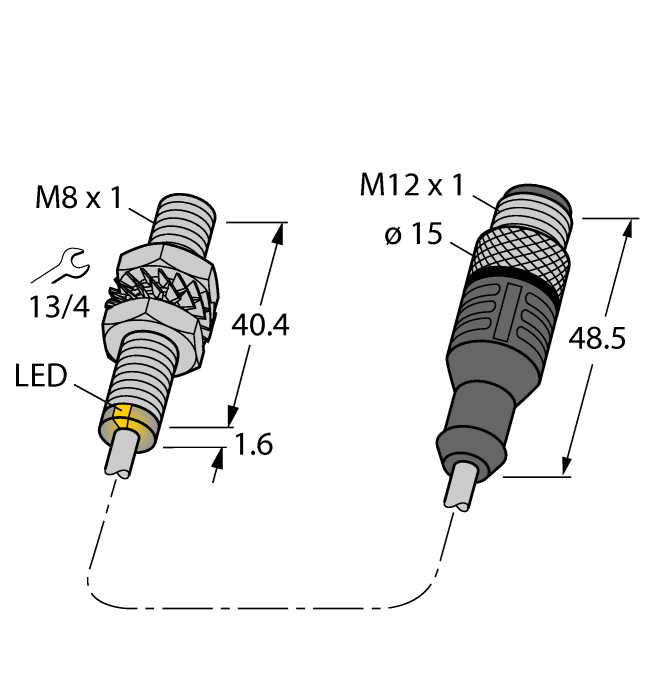

Inductive Sensor — With Weldguard coating
The Turck Inductive Sensor - With Weldguard coating # BI2-EG08-AG41X-0.3-RS4.23T/S1589 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | CH |
| Weight | 31.77 g |
| Design | Threaded barrel |
| Construction size | M8 x 1 |
| Rated switching distance | 2 mm |
| Mounting | Flush |
| Operating voltage | 10…55 VDC |
| Output function | NO contact, 2-wire |
| Switching frequency | 0.30 kHz |
| Electrical connection | Cable with connector, M12 × 1 |
| Cable length (L) | 0.30 m |
| Housing material | Stainless steel, 1.4427 SO |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Special features | weldguard |
