Inductive Sensor — IO-Link Communication

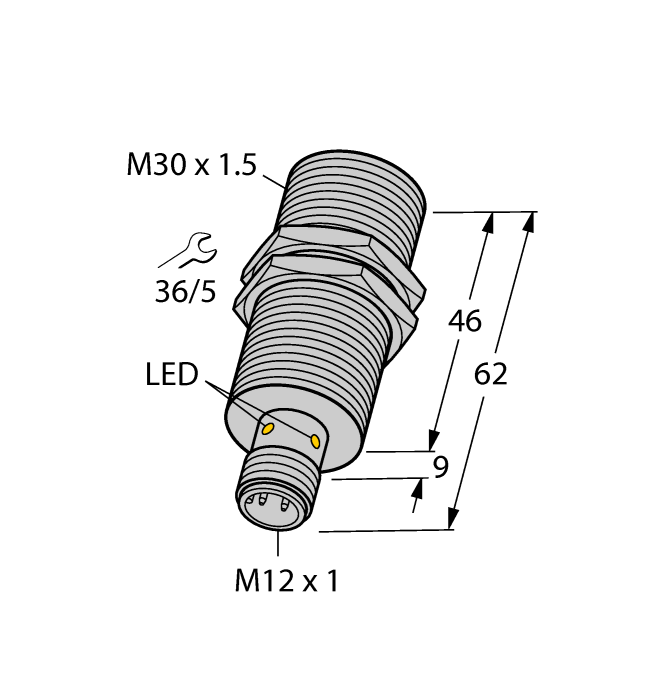

Threaded barrel, M30 x 1.5
Stainless steel, 1.4301
Front cap made of liquid crystal polymer
Factor 1 for all metals
Resistant to magnetic fields
For temperatures of -40 °C…+100 °C
High protection class IP69K for harsh environments
Special double-lip seal
Protection against all common acidic and alkaline cleaning agents
Laser engraved label, permanently legible
DC 4-wire, 10…30 VDC
M12 x 1 connector
Configuration and communication via IO-Link v1.1 or via standard I/O
Electrical outputs independently configurable
Switching distance can be parametrized per output and hysteresis
Identification via 32-byte memory
Temperature monitoring with adjustable limits
Various timer and pulse monitoring functions

The Turck Inductive Sensor - IO-Link Communication # BI15U-EM30WD-IOL6X2-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

Inductive Sensor — IO-Link Communication

Threaded barrel, M30 x 1.5
Stainless steel, 1.4301
Front cap made of liquid crystal polymer
Factor 1 for all metals
Resistant to magnetic fields
For temperatures of -40 °C…+100 °C
High protection class IP69K for harsh environments
Special double-lip seal
Protection against all common acidic and alkaline cleaning agents
Laser engraved label, permanently legible
DC 4-wire, 10…30 VDC
M12 x 1 connector
Configuration and communication via IO-Link v1.1 or via standard I/O
Electrical outputs independently configurable
Switching distance can be parametrized per output and hysteresis
Identification via 32-byte memory
Temperature monitoring with adjustable limits
Various timer and pulse monitoring functions

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

EAN	4047101436242
eCl@ss-Code (V5.1.4)	27270101 -/- Inductive proximity switch
Customs tariff number	8517620010
Country of origin	DE
Weight	123 g
Design	Threaded barrel
Construction size	M30 x 1.5
Rated switching distance	15 mm
Mounting	Flush
Operating voltage	10…30 VDC
Output function	NO/NC, PNP/NPN
Communication protocol	IO-Link
Switching frequency	1.0 kHz
Electrical connection	Connector, M12 × 1
Housing material	Stainless steel, 1.4301 (AISI 304)
Ambient temperature	-40…+100 °C
Protection class	IP68/IP69K
Special features	uprox+, Factor 1, Resistant to magnetic fields

EAN	4047101436242
eCl@ss-Code (V5.1.4)	27270101 -/- Inductive proximity switch
Customs tariff number	8517620010
Country of origin	DE
Weight	123 g
Design	Threaded barrel
Construction size	M30 x 1.5
Rated switching distance	15 mm
Mounting	Flush
Operating voltage	10…30 VDC
Output function	NO/NC, PNP/NPN
Communication protocol	IO-Link
Switching frequency	1.0 kHz
Electrical connection	Connector, M12 × 1
Housing material	Stainless steel, 1.4301 (AISI 304)
Ambient temperature	-40…+100 °C
Protection class	IP68/IP69K
Special features	uprox+, Factor 1, Resistant to magnetic fields
