SKU: BI15-M30-AP6X-H1141/S97/S1751
M30 x 1.5 · 15 mm · Flush · Connector, M12 × 1
List price. Volume pricing available.

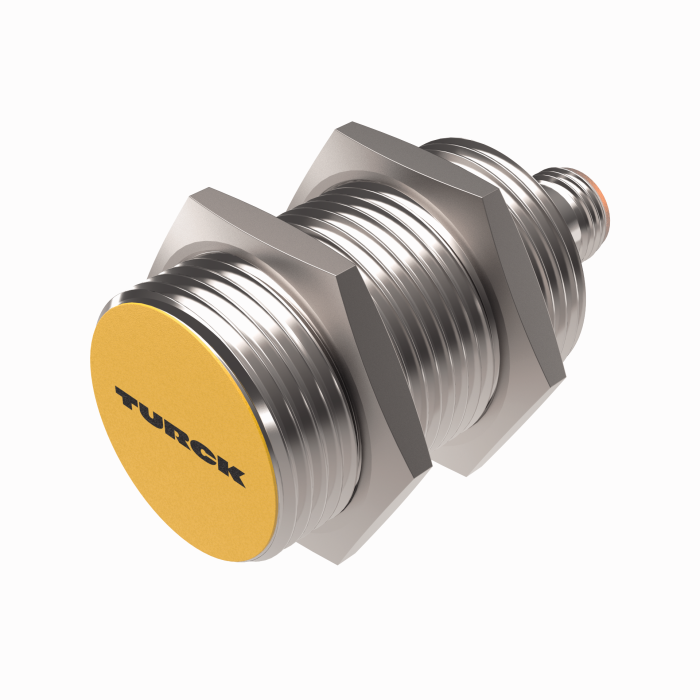

Inductive Sensor — With Extended Temperature Range — With FM Approval
The Turck Inductive Sensor - With Extended Temperature Range # BI15-M30-AP6X-H1141/S97/S1751 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | DE |
| Weight | 113.48 g |
| Design | Threaded barrel |
| Construction size | M30 x 1.5 |
| Rated switching distance | 15 mm |
| Mounting | Flush |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, PNP |
| Switching frequency | 0.30 kHz |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, CuZn, Chrome-plated |
| Ambient temperature | -40…+70 °C |
| Protection class | IP67 |
| Approvals | FM C1D2 |
| Special features | Sn + |
