Inductive Sensor - For Use in Vehicle Board Nets

Inductive Sensor — For Use in Vehicle Board Nets

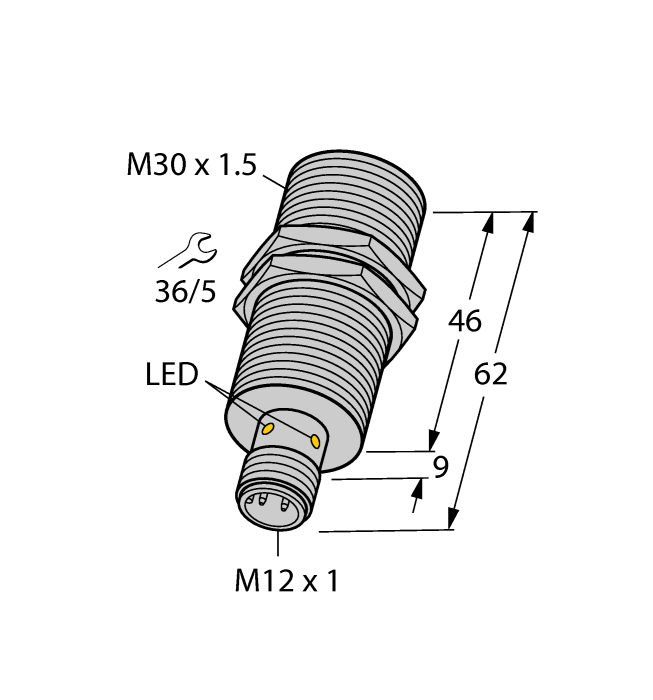

• M30 × 1.5 threaded tube
• Stainless steel, 1.4301
• For vehicle board nets, 12 V and 24 V
• Increased interference immunity 100 V/m radiated acc. ISO 11452-4 and 100 mA BCI acc. to ISO 11452-2
• Load-dump protection acc. to DIN ISO 7637-2 (SAE J 113-11)
• Extended temperature range
• High protection class IP68/IP69K
• Protection against salt spray and rapid temperature change
• Laser engraved label, permanently legible
• DC 3-wire, 8.4…65 VDC
• NO contact, PNP output
• M12 x 1 male connector
• E1 type approval from German federal office for motor vehicles

The Turck Inductive Sensor - For Use in Vehicle Board Nets # BI15-EM30-AP45XLD-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
