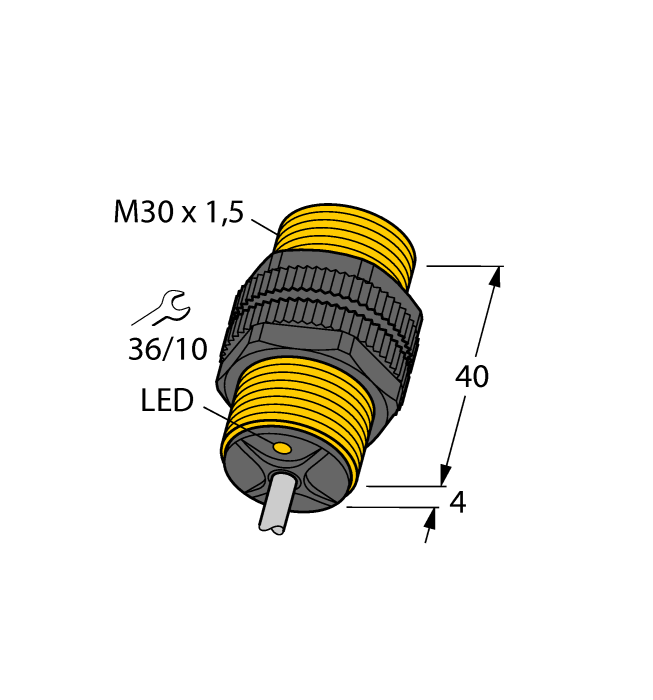

Inductive Sensor - With Extended Temperature Range

Inductive Sensor — With Extended Temperature Range

• Threaded barrel, M30 x 1.5
• Plastic, PA12‐GF30
• Temperatures up to -40 °C
• DC 2-wire, nom. 8.2 VDC
• Output acc. to DIN EN 60947-5-6 (NAMUR)
• Cable connection
• ATEX category II 2 G, Ex Zone 1
• ATEX category II 1 D, Ex Zone 20 for temperatures up to -25°C
• SIL 2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0
• SIL 3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HTF1

The Turck Inductive Sensor - With Extended Temperature Range # BI10-P30-Y1X/S97 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
