SKU: BI1.5-EG08WD-AP6X-H1341
M8 x 1 · 1.5 mm · Flush · Connector, M12 × 1
List price. Volume pricing available.

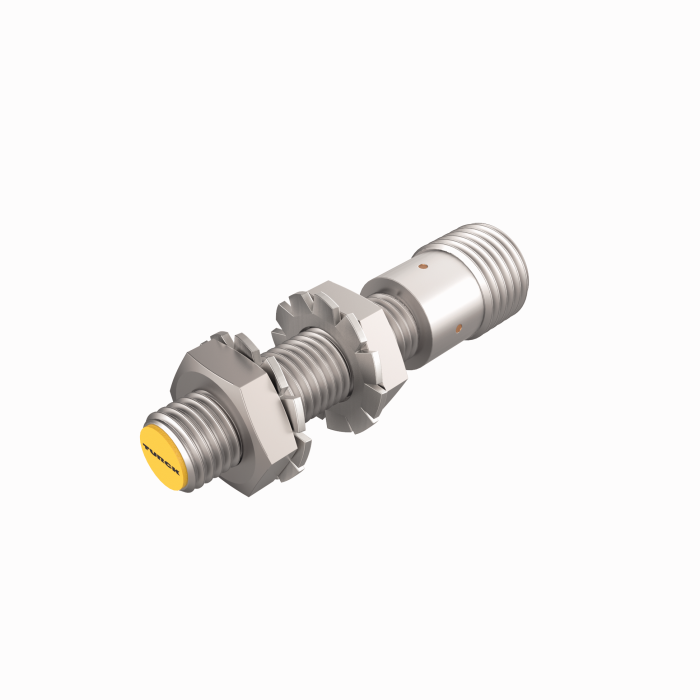

Inductive Sensor — For Harsh Environments
The Turck Inductive Sensor - For Harsh Environments # BI1.5-EG08WD-AP6X-H1341 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101152425 |
| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536504000 |
| Country of origin | DE |
| Weight | 22 g |
| Design | Threaded barrel |
| Construction size | M8 x 1 |
| Rated switching distance | 1.5 mm |
| Mounting | Flush |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, PNP |
| Switching frequency | 3.0 kHz |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless steel, 1.4427 SO |
| Ambient temperature | -25…+85 °C |
| Protection class | IP68/IP69K |
| Special features | Wash down, Pressure resistant |
