Inductive Sensor - With Increased Temperature Range

Inductive Sensor — With Increased Temperature Range

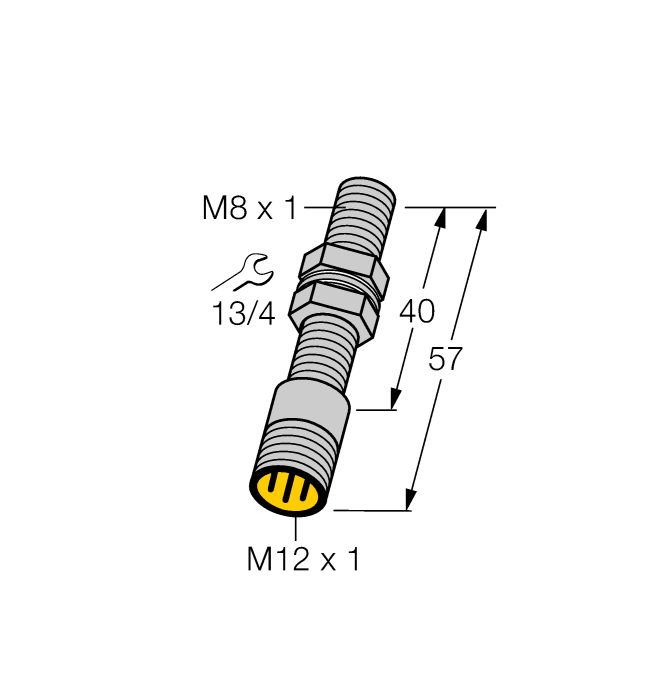

• Threaded barrel, M8 x 1
• Stainless steel, 1.4427 SO
• Temperatures up to +100 °C
• DC 2-wire, nom. 8.2 VDC
• Output acc. to EN 60947-5-6 (NAMUR)
• M12 × 1 connector
• ATEX category II 1 G, Ex Zone 0 at temperatures up to +80 °C
• ATEX category II 2 G. Ex Zone 1
• ATEX category II 1 D, Ex Zone 20 for temperatures up to +70°C
• SIL 2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0
• SIL 3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HTF1

The Turck Inductive Sensor - With Increased Temperature Range # BI1.5-EG08-Y1-H1341/S100 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
