SKU: BC8-Q10-RN6X2-0.15-SSFP3/S90
42 x 25 x 10.8 mm, Q10 · 8 mm · NC contact, NPN · Connector, M8 × 1
List price. Volume pricing available.
Capacitive Sensor
The Turck Capacitive Sensor # BC8-Q10-RN6X2-0.15-SSFP3/S90 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101149432 |
| eCl@ss-Code (V5.1.4) | 27270102 -/- Capacitive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | PL |
| Weight | 21 g |
| Design | Rectangular |

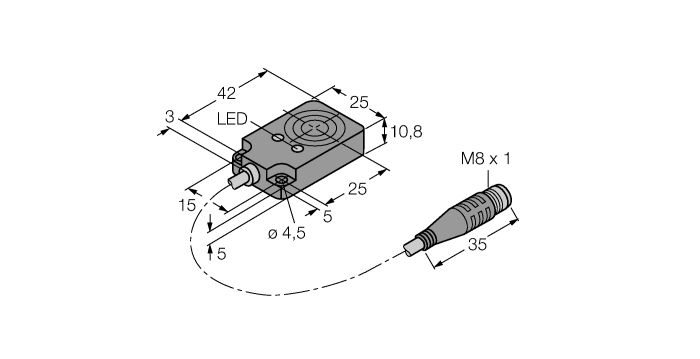

| Construction size | 42 x 25 x 10.8 mm, Q10 |
| Rated switching distance | 8 mm |
| Output function | NC contact, NPN |
| Electrical connection | Connector, M8 × 1 |
| Cable length (L) | 0.150 m |
| Housing material | Plastic, PBT-GF30-V0 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
