Capacitive Sensor - With Increased Temperature Range

Name: Valley Instrument Service
Address: 3536 Brian Way, Bakersfield, CA, 93308, US
Telephone: (661) 327-8681

SKU: BC5-S18-Y1X/S100

M18 x 1 · 7.5 mm · NAMUR · Cable

$334.50

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

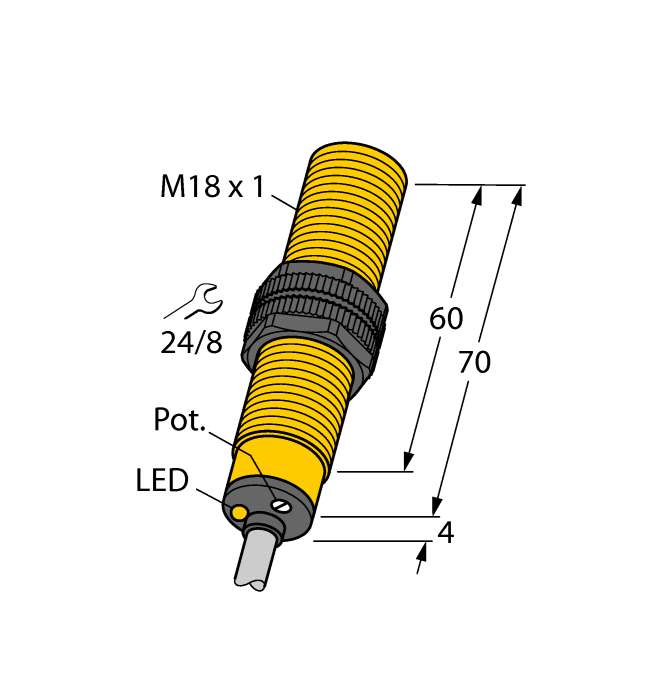

Capacitive Sensor — With Increased Temperature Range

M18 × 1 threaded barrel
Plastic, PA12‐GF30
Fine adjustment via potentiometer
For temperatures up to 100°C
DC 2-wire, nom. 8.2 VDC
Output acc. to EN 60947-5-6 (NAMUR)
Cable connection
ATEX category II 2 G. Ex Zone 1
ATEX category II 1 D, Ex Zone 20 for temperatures up to +70°C
SIL 2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0
SIL 3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HTF1

The Turck Capacitive Sensor - With Increased Temperature Range # BC5-S18-Y1X/S100 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

Capacitive Sensor - With Increased Temperature Range

SKU: BC5-S18-Y1X/S100

M18 x 1 · 7.5 mm · NAMUR · Cable

$334.50

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

Capacitive Sensor — With Increased Temperature Range

M18 × 1 threaded barrel
Plastic, PA12‐GF30
Fine adjustment via potentiometer
For temperatures up to 100°C
DC 2-wire, nom. 8.2 VDC
Output acc. to EN 60947-5-6 (NAMUR)
Cable connection
ATEX category II 2 G. Ex Zone 1
ATEX category II 1 D, Ex Zone 20 for temperatures up to +70°C
SIL 2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0
SIL 3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HTF1

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

EAN	4047101087956
eCl@ss-Code (V5.1.4)	27270102 -/- Capacitive proximity switch
Customs tariff number	8536908585
Country of origin	DE
Weight	120 g
Design	Threaded barrel
Construction size	M18 x 1
Rated switching distance	7.5 mm
Operating voltage	Nom. 8.2 VDC
Output function	NAMUR
Electrical connection	Cable
Cable length (L)	2.0 m
Housing material	Plastic, PA12-GF30, PEI
Ambient temperature	-25…+100 °C
Protection class	IP67
Approvals	ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc

EAN	4047101087956
eCl@ss-Code (V5.1.4)	27270102 -/- Capacitive proximity switch
Customs tariff number	8536908585
Country of origin	DE
Weight	120 g
Design	Threaded barrel
Construction size	M18 x 1
Rated switching distance	7.5 mm
Operating voltage	Nom. 8.2 VDC
Output function	NAMUR
Electrical connection	Cable
Cable length (L)	2.0 m
Housing material	Plastic, PA12-GF30, PEI
Ambient temperature	-25…+100 °C
Protection class	IP67
Approvals	ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc
