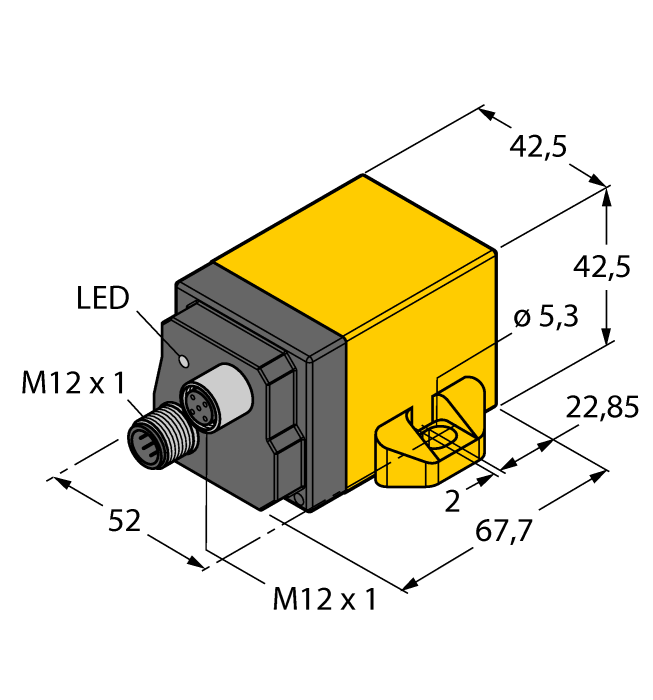

Inclinometer — With CANopen Interface

• Rectangular, height 42 mm
• Plastic, PA12-GF30
• Convenient CANopen interface
• Fulfills CiA DS‐301, CiA DSP‐410
• High resolution and accuracy
• Baud rates of 10 kbps up to 1 Mbps
• High sampling rate and bandwidth
• Parameterizable vibration suppression
• One TPDO (RTR, cyclic, event-controlled, synchronized)
• Configuration via SDO and object directory
• SYNC load (synchronized transmission of TPDO after reception of SYNC telegram)
• EMCY producer (inclination, internal device temperature monitoring)
• Failure monitoring via heartbeat or nodeguarding/lifeguarding
• Freely configurable limit frequency (digital filter)
• Robust and compact plastic housing

The Turck Inclinometer - With CANopen Interface # B2N10H-Q42-CNX2-2H1150 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
