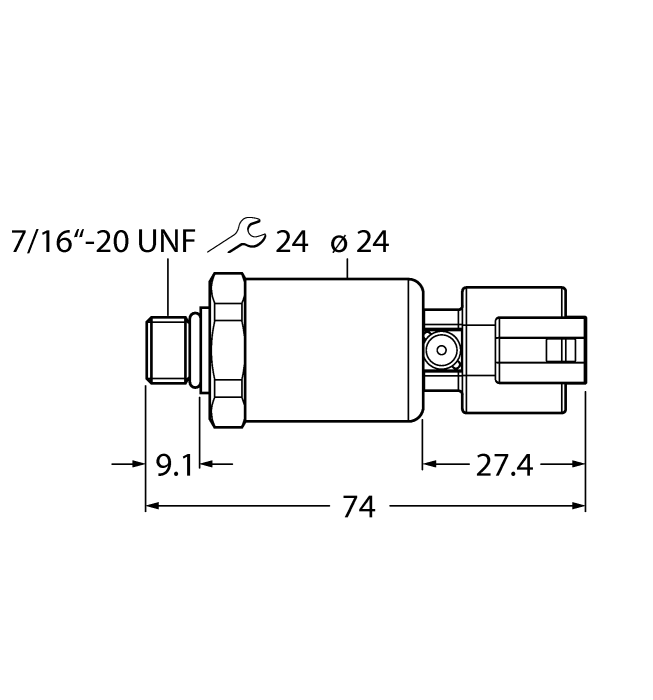

Pressure Transmitter - Ratiometric Output (3-Wire)

Name: Valley Instrument Service
Address: 3536 Brian Way, Bakersfield, CA, 93308, US
Telephone: (661) 327-8681

SKU: PT1500PSIG-2105-U6-DT043P

0…1500 psi · 7/16″-20 UNF male thread · Voltage output (3-wire) · 4.5…5.5 VDC

$194.70

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

Pressure Transmitter — Ratiometric Output (3-Wire)

For mobile hydraulic applications
Fully welded metal measuring cell
Sealless
With pressure tip orifice
Compact and robust design
Excellent EMC properties
Excellent accuracy and long-term stability
Kfz-Norm ISO 16750
Pressure range 0…1500 psi rel.
5 VDC ± 10 %
Ratiometric output 10…90 %
Process connection 7/16" UNF (SAE) male thread
Plug-in device, Deutsch DT04-3P

The Turck Pressure Transmitter - Ratiometric Output (3-Wire) # PT1500PSIG-2105-U6-DT043P is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 233 models. Select a model below to view details.

Model	Description	EAN	Customs tariff number	Weight	Process connection	Price
PT9V-2001-I2-H1141	Metal relative-pressure sensor	—	—	—	—	Request Quote	View Details →
PT9V-2003-IOL-H1141	Metal relative-pressure sensor	—	—	—	—	Request Quote	View Details →
PT15V-2003-IOL-H1141	Metal relative-pressure sensor	—	—	—	—	Request Quote	View Details →
PT24V-2003-IOL-H1141	Metal relative-pressure sensor	—	—	—	—	Request Quote	View Details →
PT10000PG-4300-16-LI3-CO244/D811 10FT	Metal relative-pressure sensor	—	—	—	—	Request Quote	View Details →
PT3500PG-4000-14-LU4-CA244/D814 2FT	Metal relative-pressure sensor	—	—	—	—	Request Quote	View Details →
PT15PSIV-2003-I2-H1143	-15…15 psi · 1/4″ NPT-18 male thread · Current output (2-wire) · 7…33 VDC	4047101500035	9026204000	92 g	1/4″ NPT-18 male thread	Request Quote	View Details →
PT15PSIV-2003-I2-H1144	-15…15 psi · 1/4″ NPT-18 male thread · Current output (2-wire) · 7…33 VDC	4047101488517	9026204000	92 g	1/4″ NPT-18 male thread	Request Quote	View Details →
PT15PSIV-2003-U1-H1141	-15…15 psi · 1/4″ NPT-18 male thread · Voltage output (3-wire) · 12…33 VDC	4047101500967	9026204000	90 g	1/4″ NPT-18 male thread	Request Quote	View Details →
PT1R-1003-I2-H1143	0…15 psi · 1/4″ NPT-18 male thread · Current output (2-wire) · 7…33 VDC	4047101520095	9026204000	83 g	1/4″ NPT-18 male thread	Request Quote	View Details →

Pressure Transmitter - Ratiometric Output (3-Wire)

SKU: PT1500PSIG-2105-U6-DT043P

0…1500 psi · 7/16″-20 UNF male thread · Voltage output (3-wire) · 4.5…5.5 VDC

$194.70

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

Pressure Transmitter — Ratiometric Output (3-Wire)

For mobile hydraulic applications
Fully welded metal measuring cell
Sealless
With pressure tip orifice
Compact and robust design
Excellent EMC properties
Excellent accuracy and long-term stability
Kfz-Norm ISO 16750
Pressure range 0…1500 psi rel.
5 VDC ± 10 %
Ratiometric output 10…90 %
Process connection 7/16" UNF (SAE) male thread
Plug-in device, Deutsch DT04-3P

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 233 models. Select a model below to view details.

Model	Description	EAN	Customs tariff number	Weight	Process connection	Price
PT9V-2001-I2-H1141	Metal relative-pressure sensor	—	—	—	—	Request Quote	View Details →
PT9V-2003-IOL-H1141	Metal relative-pressure sensor	—	—	—	—	Request Quote	View Details →
PT15V-2003-IOL-H1141	Metal relative-pressure sensor	—	—	—	—	Request Quote	View Details →
PT24V-2003-IOL-H1141	Metal relative-pressure sensor	—	—	—	—	Request Quote	View Details →
PT10000PG-4300-16-LI3-CO244/D811 10FT	Metal relative-pressure sensor	—	—	—	—	Request Quote	View Details →
PT3500PG-4000-14-LU4-CA244/D814 2FT	Metal relative-pressure sensor	—	—	—	—	Request Quote	View Details →
PT15PSIV-2003-I2-H1143	-15…15 psi · 1/4″ NPT-18 male thread · Current output (2-wire) · 7…33 VDC	4047101500035	9026204000	92 g	1/4″ NPT-18 male thread	Request Quote	View Details →
PT15PSIV-2003-I2-H1144	-15…15 psi · 1/4″ NPT-18 male thread · Current output (2-wire) · 7…33 VDC	4047101488517	9026204000	92 g	1/4″ NPT-18 male thread	Request Quote	View Details →
PT15PSIV-2003-U1-H1141	-15…15 psi · 1/4″ NPT-18 male thread · Voltage output (3-wire) · 12…33 VDC	4047101500967	9026204000	90 g	1/4″ NPT-18 male thread	Request Quote	View Details →
PT1R-1003-I2-H1143	0…15 psi · 1/4″ NPT-18 male thread · Current output (2-wire) · 7…33 VDC	4047101520095	9026204000	83 g	1/4″ NPT-18 male thread	Request Quote	View Details →

EAN	4047101514131
eCl@ss-Code (V5.1.4)	27200614 -/- Piezoresistive sensor (absolute and relative pressure)
Customs tariff number	90262020000
Country of origin	CH
Weight	96 g
Design	Without display
Process connection	7/16″-20 UNF male thread
Pressure type	Relative pressure
Pressure range bar	0…103.42 bar
Pressure range psi	0…1500 psi
Operating voltage	4.5…5.5 VDC
Electrical output	Voltage output (3-wire)
Voltage output	0.5…4.5 V
Electrical connection	Connector, Deutsch DT04-3P
Housing material	Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer	Stainless steel 1.4404 (AISI 316L)
Medium temperature	-40…+125 °C
Ambient temperature	-40…+100 °C
Protection class	IP69K

EAN	4047101514131
eCl@ss-Code (V5.1.4)	27200614 -/- Piezoresistive sensor (absolute and relative pressure)
Customs tariff number	90262020000
Country of origin	CH
Weight	96 g
Design	Without display
Process connection	7/16″-20 UNF male thread
Pressure type	Relative pressure
Pressure range bar	0…103.42 bar
Pressure range psi	0…1500 psi
Operating voltage	4.5…5.5 VDC
Electrical output	Voltage output (3-wire)
Voltage output	0.5…4.5 V
Electrical connection	Connector, Deutsch DT04-3P
Housing material	Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer	Stainless steel 1.4404 (AISI 316L)
Medium temperature	-40…+125 °C
Ambient temperature	-40…+100 °C
Protection class	IP69K
