Family Owned & Operated Since 1971• Bakersfield, CA

Pressure Sensor - Relative Pressure: 0…100 Bar

Name: Valley Instrument Service
Address: 3536 Brian Way, Bakersfield, CA, 93308, US
Telephone: (661) 327-8681

SKU: PS510-100-01-LI2UPN8-H1141

0…1500 psi · G 1/4'' female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC

$469.50

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

Pressure Sensor — Relative Pressure: 0…100 Bar

4-digit, 2-color (red/green), 12-segment display, rotatable by 180°
Housing is rotatable after mounting the process connection
Metal measuring cell
Pressure range 0…100 bar relative
18…33 VDC
NO/NC contact, PNP/NPN output, analog output (current/voltage), IO-Link SSP4.1.1
Process connection G1/4″ female thread
Connector device, M12 × 1

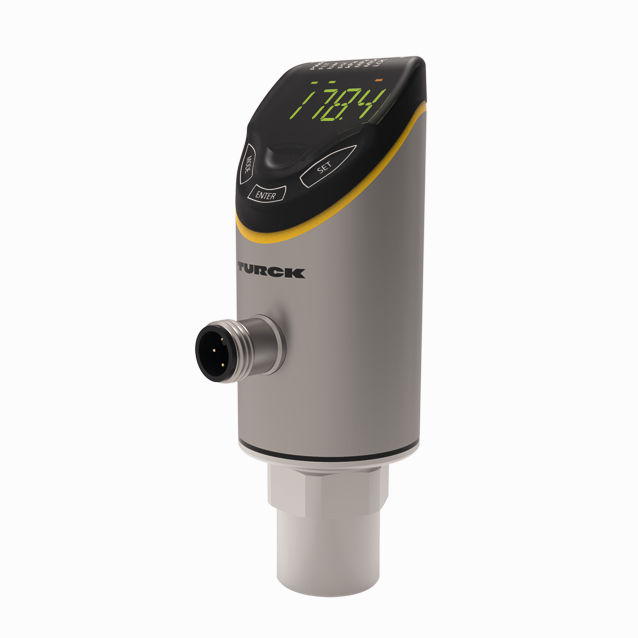

The Turck Pressure Sensor - Relative Pressure: 0…100 Bar # PS510-100-01-LI2UPN8-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 148 models. Select a model below to view details.

Model	Description	EAN	Customs tariff number	Weight	Process connection	Price
PS510-25V-05-2UPN8-H1141		—	—	—	—	Request Quote	View Details →
PS510-16V-03-LI2UPN8-H1141/S1802		—	—	—	—	Request Quote	View Details →
PS510-16V-03-LI2UPN8-H1141/S1704		—	—	—	—	Request Quote	View Details →
PS510-10V-03-LI2UPN8-H1141/S1049		—	—	—	—	Request Quote	View Details →
PS510-10A-01-LI2UPN8-H1141	0…150 psi · G 1/4'' female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101484502	9026204000	281 g	G 1/4'' female thread	Request Quote	View Details →
PS510-10V-04-2UPN8-H1141	-14…150 psi · G 1/4'' male thread · 2 × switching output, IO-Link · 18…33 VDC	4047101554939	90262020000	283 g	G 1/4'' male thread	Request Quote	View Details →
PS510-10V-04-LI2UPN8-H1141	-14…150 psi · G 1/4'' male thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101663716	90262020000	285 g	G 1/4'' male thread	Request Quote	View Details →
PS510-10V-05-LI2UPN8-H1141	-14…150 psi · 7/16″-20 UNF male thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101555547	9026204000	249 g	7/16″-20 UNF male thread	Request Quote	View Details →
PS510-10A-02-LI2UPN8-H1141	0…150 psi · 1/4″ NPT-18 female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101484465	90262020000	290 g	1/4″ NPT-18 female thread	Request Quote	View Details →
PS510-10A-03-LI2UPN8-H1141	0…150 psi · 1/4″ NPT-18 male thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101484472	9026204000	278 g	1/4″ NPT-18 male thread	Request Quote	View Details →

Pressure Sensor - Relative Pressure: 0…100 Bar

SKU: PS510-100-01-LI2UPN8-H1141

0…1500 psi · G 1/4'' female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC

$469.50

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

Pressure Sensor — Relative Pressure: 0…100 Bar

4-digit, 2-color (red/green), 12-segment display, rotatable by 180°
Housing is rotatable after mounting the process connection
Metal measuring cell
Pressure range 0…100 bar relative
18…33 VDC
NO/NC contact, PNP/NPN output, analog output (current/voltage), IO-Link SSP4.1.1
Process connection G1/4″ female thread
Connector device, M12 × 1

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 148 models. Select a model below to view details.

Model	Description	EAN	Customs tariff number	Weight	Process connection	Price
PS510-25V-05-2UPN8-H1141		—	—	—	—	Request Quote	View Details →
PS510-16V-03-LI2UPN8-H1141/S1802		—	—	—	—	Request Quote	View Details →
PS510-16V-03-LI2UPN8-H1141/S1704		—	—	—	—	Request Quote	View Details →
PS510-10V-03-LI2UPN8-H1141/S1049		—	—	—	—	Request Quote	View Details →
PS510-10A-01-LI2UPN8-H1141	0…150 psi · G 1/4'' female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101484502	9026204000	281 g	G 1/4'' female thread	Request Quote	View Details →
PS510-10V-04-2UPN8-H1141	-14…150 psi · G 1/4'' male thread · 2 × switching output, IO-Link · 18…33 VDC	4047101554939	90262020000	283 g	G 1/4'' male thread	Request Quote	View Details →
PS510-10V-04-LI2UPN8-H1141	-14…150 psi · G 1/4'' male thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101663716	90262020000	285 g	G 1/4'' male thread	Request Quote	View Details →
PS510-10V-05-LI2UPN8-H1141	-14…150 psi · 7/16″-20 UNF male thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101555547	9026204000	249 g	7/16″-20 UNF male thread	Request Quote	View Details →
PS510-10A-02-LI2UPN8-H1141	0…150 psi · 1/4″ NPT-18 female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101484465	90262020000	290 g	1/4″ NPT-18 female thread	Request Quote	View Details →
PS510-10A-03-LI2UPN8-H1141	0…150 psi · 1/4″ NPT-18 male thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101484472	9026204000	278 g	1/4″ NPT-18 male thread	Request Quote	View Details →

EAN	4047101555325
eCl@ss-Code (V5.1.4)	27200614 -/- Piezoresistive sensor (absolute and relative pressure)
Customs tariff number	8538908180
Country of origin	DE
Weight	290 g
Design	With display
Process connection	G 1/4'' female thread
Pressure type	Relative pressure
Pressure range bar	0…100 bar
Pressure range psi	0…1500 psi
Operating voltage	18…33 VDC
Electrical output	Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link
Voltage output	0…10 V
Current output	4…20 mA
Communication protocol	IO-Link
Electrical connection	Connector, M12 × 1
Housing material	Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5
Materials (contact with media)	Stainless steel 1.4404 (AISI 316L)/1.4542 (AISI 630)
Medium temperature	-40…+80 °C
Ambient temperature	-40…+80 °C
Protection class	IP66/IP67/IP69K
Approvals	CE, Metrological certification (RUS), cULus

EAN	4047101555325
eCl@ss-Code (V5.1.4)	27200614 -/- Piezoresistive sensor (absolute and relative pressure)
Customs tariff number	8538908180
Country of origin	DE
Weight	290 g
Design	With display
Process connection	G 1/4'' female thread
Pressure type	Relative pressure
Pressure range bar	0…100 bar
Pressure range psi	0…1500 psi
Operating voltage	18…33 VDC
Electrical output	Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link
Voltage output	0…10 V
Current output	4…20 mA
Communication protocol	IO-Link
Electrical connection	Connector, M12 × 1
Housing material	Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5
Materials (contact with media)	Stainless steel 1.4404 (AISI 316L)/1.4542 (AISI 630)
Medium temperature	-40…+80 °C
Ambient temperature	-40…+80 °C
Protection class	IP66/IP67/IP69K
Approvals	CE, Metrological certification (RUS), cULus
