Pressure Sensor - Differential Pressure: 0…25 bar

Name: Valley Instrument Service
Address: 3536 Brian Way, Bakersfield, CA, 93308, US
Telephone: (661) 327-8681

SKU: PS325-025D-02-LI2UPN8-H1141

0…360 psi · 1/4″ NPT-18 female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC

$916.30

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

Pressure Sensor — Differential Pressure: 0…25 bar

4-digit, 2-color (red/green), 12-segment display, rotatable by 180°
Housing is rotatable after mounting the process connection
Pressure range 0…25 bar diff.
18…33 V DC
NO/NC contact, PNP/NPN output, analog output (current/voltage), IO-Link
T-type
Process connection 1/4 inch NPT-18 female thread
Connector device, M12 × 1

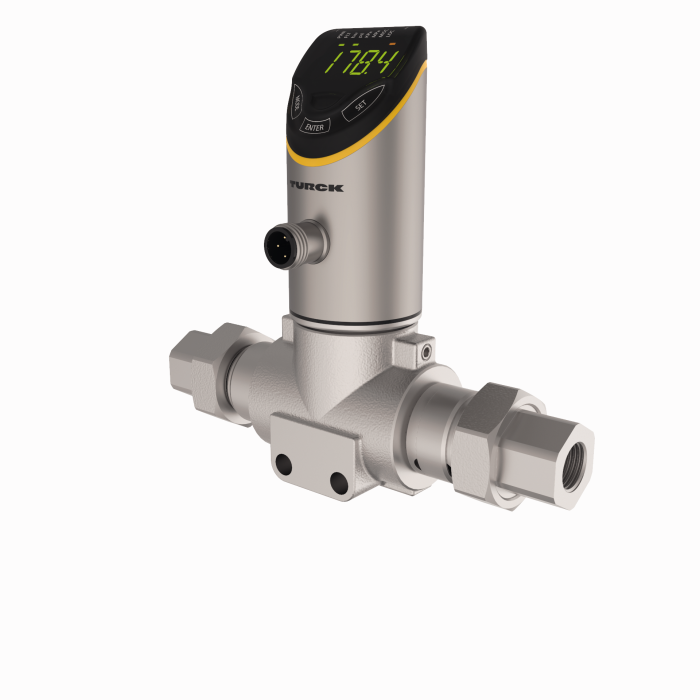

The Turck Pressure Sensor - Differential Pressure: 0…25 bar # PS325-025D-02-LI2UPN8-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 13 models. Select a model below to view details.

Model	Description	EAN	Weight	Process connection	Pressure range bar	Price
PS325-001D-01-LI2UPN8-H1141	0…15 psi · G 1/4'' female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101535228	1081 g	G 1/4'' female thread	0…1 bar	Request Quote	View Details →
PS325-001D-02-LI2UPN8-H1141	0…15 psi · 1/4″ NPT-18 female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101535167	0 g	1/4″ NPT-18 female thread	0…1 bar	Request Quote	View Details →
PS325-001D-02-2UPN8-H1141	0…15 psi · 1/4″ NPT-18 female thread · 2 × switching output, IO-Link · 18…33 VDC	4047101535044	0 g	1/4″ NPT-18 female thread	0…1 bar	Request Quote	View Details →
PS325-003D-02-2UPN8-H1141	0…36 psi · 1/4″ NPT-18 female thread · 2 × switching output, IO-Link · 18…33 VDC	4047101535037	1078 g	1/4″ NPT-18 female thread	0…2.5 bar	Request Quote	View Details →
PS325-010D-01-LI2UPN8-H1141	0…150 psi · G 1/4'' female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101535204	1078 g	G 1/4'' female thread	0…10 bar	Request Quote	View Details →
PS325-010D-02-2UPN8-H1141	0…150 psi · 1/4″ NPT-18 female thread · 2 × switching output, IO-Link · 18…33 VDC	4047101535020	0 g	1/4″ NPT-18 female thread	0…10 bar	Request Quote	View Details →
PS325-010D-02-LI2UPN8-H1141	0…150 psi · 1/4″ NPT-18 female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101535143	1077 g	1/4″ NPT-18 female thread	0…10 bar	Request Quote	View Details →
PS325-016D-01-LI2UPN8-H1141	0…230 psi · G 1/4'' female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101535198	1082 g	G 1/4'' female thread	0…16 bar	Request Quote	View Details →
PS325-025D-02-LI2UPN8-H1141Current	0…360 psi · 1/4″ NPT-18 female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101535129	1080 g	1/4″ NPT-18 female thread	0…25 bar	Request Quote	Viewing
PS325-040D-02-LI2UPN8-H1141	0…600 psi · 1/4″ NPT-18 female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101535112	1.1 g	1/4″ NPT-18 female thread	0…40 bar	Request Quote	View Details →

Pressure Sensor - Differential Pressure: 0…25 bar

SKU: PS325-025D-02-LI2UPN8-H1141

0…360 psi · 1/4″ NPT-18 female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC

$916.30

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

Pressure Sensor — Differential Pressure: 0…25 bar

4-digit, 2-color (red/green), 12-segment display, rotatable by 180°
Housing is rotatable after mounting the process connection
Pressure range 0…25 bar diff.
18…33 V DC
NO/NC contact, PNP/NPN output, analog output (current/voltage), IO-Link
T-type
Process connection 1/4 inch NPT-18 female thread
Connector device, M12 × 1

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 13 models. Select a model below to view details.

Model	Description	EAN	Weight	Process connection	Pressure range bar	Price
PS325-001D-01-LI2UPN8-H1141	0…15 psi · G 1/4'' female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101535228	1081 g	G 1/4'' female thread	0…1 bar	Request Quote	View Details →
PS325-001D-02-LI2UPN8-H1141	0…15 psi · 1/4″ NPT-18 female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101535167	0 g	1/4″ NPT-18 female thread	0…1 bar	Request Quote	View Details →
PS325-001D-02-2UPN8-H1141	0…15 psi · 1/4″ NPT-18 female thread · 2 × switching output, IO-Link · 18…33 VDC	4047101535044	0 g	1/4″ NPT-18 female thread	0…1 bar	Request Quote	View Details →
PS325-003D-02-2UPN8-H1141	0…36 psi · 1/4″ NPT-18 female thread · 2 × switching output, IO-Link · 18…33 VDC	4047101535037	1078 g	1/4″ NPT-18 female thread	0…2.5 bar	Request Quote	View Details →
PS325-010D-01-LI2UPN8-H1141	0…150 psi · G 1/4'' female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101535204	1078 g	G 1/4'' female thread	0…10 bar	Request Quote	View Details →
PS325-010D-02-2UPN8-H1141	0…150 psi · 1/4″ NPT-18 female thread · 2 × switching output, IO-Link · 18…33 VDC	4047101535020	0 g	1/4″ NPT-18 female thread	0…10 bar	Request Quote	View Details →
PS325-010D-02-LI2UPN8-H1141	0…150 psi · 1/4″ NPT-18 female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101535143	1077 g	1/4″ NPT-18 female thread	0…10 bar	Request Quote	View Details →
PS325-016D-01-LI2UPN8-H1141	0…230 psi · G 1/4'' female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101535198	1082 g	G 1/4'' female thread	0…16 bar	Request Quote	View Details →
PS325-025D-02-LI2UPN8-H1141Current	0…360 psi · 1/4″ NPT-18 female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101535129	1080 g	1/4″ NPT-18 female thread	0…25 bar	Request Quote	Viewing
PS325-040D-02-LI2UPN8-H1141	0…600 psi · 1/4″ NPT-18 female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101535112	1.1 g	1/4″ NPT-18 female thread	0…40 bar	Request Quote	View Details →

EAN	4047101535129
eCl@ss-Code (V5.1.4)	27200614 -/- Piezoresistive sensor (absolute and relative pressure)
Customs tariff number	9026204000
Country of origin	DE
Weight	1080 g
Design	With display (integrated probe)
Process connection	1/4″ NPT-18 female thread
Pressure type	Differential Pressure
Pressure range bar	0…25 bar
Pressure range psi	0…360 psi
Operating voltage	18…33 VDC
Electrical output	Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link
Voltage output	0…10 V
Current output	4…20 mA
Communication protocol	IO-Link
Electrical connection	Connector, M12 × 1
Housing material	Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5
Materials (contact with media)	Stainless steel 1.4404 (AISI 316L), Al₂O₃, FKM
Medium temperature	-30…+80 °C
Ambient temperature	-40…+80 °C
Protection class	IP66/IP67/IP69K
Approvals	CE, Metrological certification (RUS), cULus

EAN	4047101535129
eCl@ss-Code (V5.1.4)	27200614 -/- Piezoresistive sensor (absolute and relative pressure)
Customs tariff number	9026204000
Country of origin	DE
Weight	1080 g
Design	With display (integrated probe)
Process connection	1/4″ NPT-18 female thread
Pressure type	Differential Pressure
Pressure range bar	0…25 bar
Pressure range psi	0…360 psi
Operating voltage	18…33 VDC
Electrical output	Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link
Voltage output	0…10 V
Current output	4…20 mA
Communication protocol	IO-Link
Electrical connection	Connector, M12 × 1
Housing material	Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5
Materials (contact with media)	Stainless steel 1.4404 (AISI 316L), Al₂O₃, FKM
Medium temperature	-30…+80 °C
Ambient temperature	-40…+80 °C
Protection class	IP66/IP67/IP69K
Approvals	CE, Metrological certification (RUS), cULus
