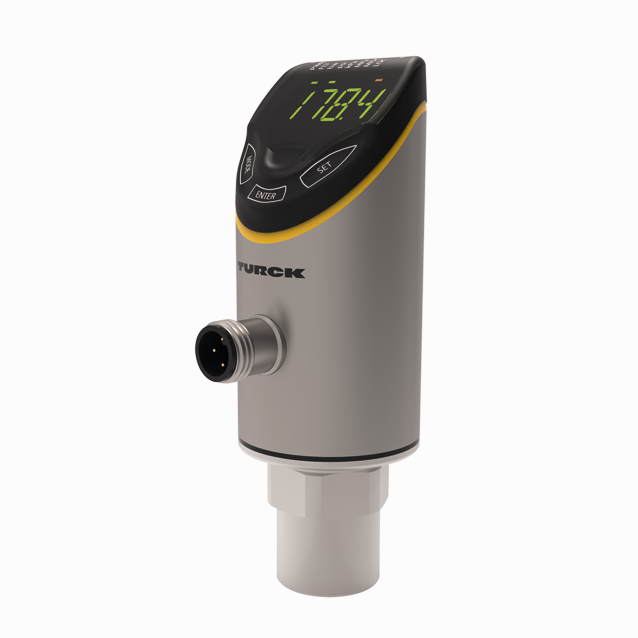

Pressure Sensor - Relative Pressure: -1…2.5 Bar

Name: Valley Instrument Service
Address: 3536 Brian Way, Bakersfield, CA, 93308, US
Telephone: (661) 327-8681

SKU: PS310-2.5V-01-2UPN8-H1141/X

-14…36 psi · G 1/4'' female thread · 2 × switching output, IO-Link · 18…33 VDC

$469.50

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

Pressure Sensor — Relative Pressure: -1…2.5 Bar

4-digit, 2-color (red/green), 12-segment display, rotatable by 180°
Housing is rotatable after mounting the process connection
Ceramic measuring cell
Peak pressure aperture
18…33 VDC
NO/NC contact, PNP/NPN output, IO-Link
Process connection G1/4" female thread
Plug-in device, M12 × 1

The Turck Pressure Sensor - Relative Pressure: -1…2.5 Bar # PS310-2.5V-01-2UPN8-H1141/X is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 61 models. Select a model below to view details.

Model	Description	EAN	Customs tariff number	Weight	Process connection	Price
PS310-0V-01-LI2UPN8-H1141	-14…0 psi · G 1/4'' female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101555745	9026204000	274 g	G 1/4'' female thread	Request Quote	View Details →
PS310-0V-01-2UPN8-H1141	-14…0 psi · G 1/4'' female thread · 2 × switching output, IO-Link · 18…33 VDC	4047101555134	8538908180	273 g	G 1/4'' female thread	Request Quote	View Details →
PS310-0V-02-2UPN8-H1141	-14…0 psi · 1/4″ NPT-18 female thread · 2 × switching output, IO-Link · 18…33 VDC	4047101555172	90262020000	275 g	1/4″ NPT-18 female thread	Request Quote	View Details →
PS310-0V-02-LI2UPN8-H1141	-14…0 psi · 1/4″ NPT-18 female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101555783	90262020000	304 g	1/4″ NPT-18 female thread	Request Quote	View Details →
PS310-0V-03-LI2UPN8-H1141	-14…0 psi · 1/4″ NPT-18 male thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101555776	8536698000	293 g	1/4″ NPT-18 male thread	Request Quote	View Details →
PS310-0V-04-2UPN8-H1141	-14…0 psi · G 1/4'' male thread · 2 × switching output, IO-Link · 18…33 VDC	4047101555127	90262020000	288 g	G 1/4'' male thread	Request Quote	View Details →
PS310-0V-04-LI2UPN8-H1141	-14…0 psi · G 1/4'' male thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101555738	90262020000	286 g	G 1/4'' male thread	Request Quote	View Details →
PS310-0V-05-2UPN8-H1141	-14…0 psi · 7/16″-20 UNF male thread · 2 × switching output, IO-Link · 18…33 VDC	4047101555158	90262020000	275 g	7/16″-20 UNF male thread	Request Quote	View Details →
PS310-0V-05-LI2UPN8-H1141	-14…0 psi · 7/16″-20 UNF male thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101555769	90262020000	275 g	7/16″-20 UNF male thread	Request Quote	View Details →
PS310-0V-08-2UPN8-H1141	-14…0 psi · G 1/2” male thread DIN 3852-E (manometer) · 2 × switching output, IO-Link · 18…33 VDC	4047101555141	90262020000	275 g	G 1/2” male thread DIN 3852-E (manometer)	Request Quote	View Details →

Pressure Sensor - Relative Pressure: -1…2.5 Bar

SKU: PS310-2.5V-01-2UPN8-H1141/X

-14…36 psi · G 1/4'' female thread · 2 × switching output, IO-Link · 18…33 VDC

$469.50

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

Pressure Sensor — Relative Pressure: -1…2.5 Bar

4-digit, 2-color (red/green), 12-segment display, rotatable by 180°
Housing is rotatable after mounting the process connection
Ceramic measuring cell
Peak pressure aperture
18…33 VDC
NO/NC contact, PNP/NPN output, IO-Link
Process connection G1/4" female thread
Plug-in device, M12 × 1

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 61 models. Select a model below to view details.

Model	Description	EAN	Customs tariff number	Weight	Process connection	Price
PS310-0V-01-LI2UPN8-H1141	-14…0 psi · G 1/4'' female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101555745	9026204000	274 g	G 1/4'' female thread	Request Quote	View Details →
PS310-0V-01-2UPN8-H1141	-14…0 psi · G 1/4'' female thread · 2 × switching output, IO-Link · 18…33 VDC	4047101555134	8538908180	273 g	G 1/4'' female thread	Request Quote	View Details →
PS310-0V-02-2UPN8-H1141	-14…0 psi · 1/4″ NPT-18 female thread · 2 × switching output, IO-Link · 18…33 VDC	4047101555172	90262020000	275 g	1/4″ NPT-18 female thread	Request Quote	View Details →
PS310-0V-02-LI2UPN8-H1141	-14…0 psi · 1/4″ NPT-18 female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101555783	90262020000	304 g	1/4″ NPT-18 female thread	Request Quote	View Details →
PS310-0V-03-LI2UPN8-H1141	-14…0 psi · 1/4″ NPT-18 male thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101555776	8536698000	293 g	1/4″ NPT-18 male thread	Request Quote	View Details →
PS310-0V-04-2UPN8-H1141	-14…0 psi · G 1/4'' male thread · 2 × switching output, IO-Link · 18…33 VDC	4047101555127	90262020000	288 g	G 1/4'' male thread	Request Quote	View Details →
PS310-0V-04-LI2UPN8-H1141	-14…0 psi · G 1/4'' male thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101555738	90262020000	286 g	G 1/4'' male thread	Request Quote	View Details →
PS310-0V-05-2UPN8-H1141	-14…0 psi · 7/16″-20 UNF male thread · 2 × switching output, IO-Link · 18…33 VDC	4047101555158	90262020000	275 g	7/16″-20 UNF male thread	Request Quote	View Details →
PS310-0V-05-LI2UPN8-H1141	-14…0 psi · 7/16″-20 UNF male thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC	4047101555769	90262020000	275 g	7/16″-20 UNF male thread	Request Quote	View Details →
PS310-0V-08-2UPN8-H1141	-14…0 psi · G 1/2” male thread DIN 3852-E (manometer) · 2 × switching output, IO-Link · 18…33 VDC	4047101555141	90262020000	275 g	G 1/2” male thread DIN 3852-E (manometer)	Request Quote	View Details →

EAN	4047101554991
eCl@ss-Code (V5.1.4)	27200614 -/- Piezoresistive sensor (absolute and relative pressure)
Customs tariff number	8536698000
Country of origin	DE
Weight	309 g
Design	With display
Process connection	G 1/4'' female thread
Pressure type	Relative pressure
Pressure range bar	-1…2.5 bar
Pressure range psi	-14…36 psi
Operating voltage	18…33 VDC
Electrical output	2 × switching output, IO-Link
Communication protocol	IO-Link
Electrical connection	Connector, M12 × 1
Housing material	Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5
Materials (contact with media)	Stainless steel 1.4404 (AISI 316L), Al₂O₃, FKM
Medium temperature	-30…+80 °C
Ambient temperature	-40…+80 °C
Protection class	IP66/IP67/IP69K
Approvals	CE, Metrological certification (RUS), cULus

EAN	4047101554991
eCl@ss-Code (V5.1.4)	27200614 -/- Piezoresistive sensor (absolute and relative pressure)
Customs tariff number	8536698000
Country of origin	DE
Weight	309 g
Design	With display
Process connection	G 1/4'' female thread
Pressure type	Relative pressure
Pressure range bar	-1…2.5 bar
Pressure range psi	-14…36 psi
Operating voltage	18…33 VDC
Electrical output	2 × switching output, IO-Link
Communication protocol	IO-Link
Electrical connection	Connector, M12 × 1
Housing material	Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5
Materials (contact with media)	Stainless steel 1.4404 (AISI 316L), Al₂O₃, FKM
Medium temperature	-30…+80 °C
Ambient temperature	-40…+80 °C
Protection class	IP66/IP67/IP69K
Approvals	CE, Metrological certification (RUS), cULus
