SKU: SDL730

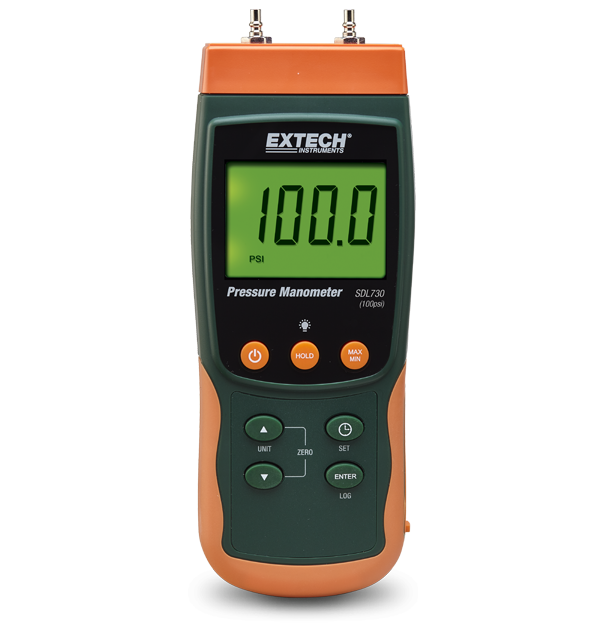

Measure and datalog high-range 101.5psi (7000mbar) pressure readings. Dual differential inputs with internal sensors. Manually store up to 99 readings, while SD memory card (included) allows continuous datalogging and readings can easily be exported to an Excel format for further analysis.
List price. Volume pricing available.
5 PSI. Measure and datalog high-range 101.5psi (7000mbar) pressure readings. Dual differential inputs with internal sensors. Manually store up to 99 readings, while SD memory card (included) allows continuous datalogging and readings can easily be exported to an Excel format for further analysis.
The Extech SDL730 Differential Pressure Manometer Datalogger 201.5 PSI # SDL730 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Pressure (atmosphere) | 6.905atm |
| Pressure (atmosphere) Basic Accuracy | ±2% full scale |
| Pressure (atmosphere) Max Resolution | 0.005atm |
| Pressure (hPa) | 7000hPa |
| Pressure (hPa) Basic Accuracy | ±2% full scale |
| Pressure (hPa) Max Resolution | 5hPa |
| Pressure (inH2O) | 2810inH₂O |
| Pressure (inH2O) Basic Accuracy | ±2% full scale |
| Pressure (inH2O) Max Resolution | 2inH₂O |
| Pressure (inHg) | 206.7inHg |
| Pressure (inHg) Basic Accuracy | ±2% full scale |
| Pressure (inHg) Max Resolution | 0.1inHg |
| Pressure (kgcm²) | 7.135kg/cm² |
| Pressure (kgcm²) Basic Accuracy | ±2% full scale |
| Pressure (kgcm²) Max Resolution | 0.005kg/cm² |
| Pressure (kPa) | 700kPa |
| Pressure (kPa) Basic Accuracy | ±1% full scale |
| Pressure (kPa) Max Resolution | 0.5kPa |
| Pressure (mbar) | 7000mbar |
| Pressure (mbar) Basic Accuracy | ±2% full scale |
| Pressure (mbar) Max Resolution | 5mbar |
| Pressure (mH₂O) | 71.35mH₂O |
| Pressure (mH₂O) Basic Accuracy | ±2% full scale |
| Pressure (mH₂O) Max Resolution | 0.05mH₂O |
| Pressure (mmHg) | 5250mmHg |
| Pressure (mmHg) Basic Accuracy | ±2% full scale |
| Pressure (mmHg) Max Resolution | 5mmHg |
| Pressure (psi) | 101.5psi |
| Pressure (psi) Basic Accuracy | ±2% full scale |
| Pressure (psi) Max Resolution | 0.05psi |
| Certifications | CE |
| Dimensions | 7.5 × 2.7 × 1.8" (190 × 68 × 45 mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 0.59 lbs (265g) |
