SKU: CJ-59092-US-EN
Battery voltage monitor system bundling 16 BVM units with clamps, accessories, and a transport case. Used during automated battery-bank capacity tests with the Torkel discharge load — each BVM continuously monitors a single cell or jar voltage during the discharge for full-string telemetry without manual probing.
List price. Volume pricing available.

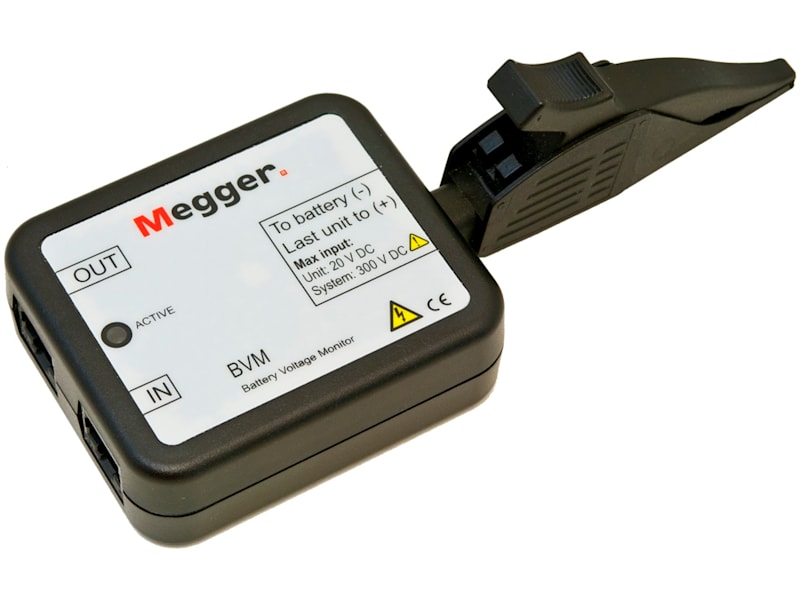

Battery Voltage Monitor System (16 Units)
Note: This is a system of 16 battery voltage monitor units. See CJ-59090 for individual units.
The Megger BVM is a battery voltage monitor used for the capacity testing of large, industrial battery banks commonly found in electrical power substations, telecom facilities, and computer data center UPS systems. When used in conjunction with a load device, such as the TORKEL unit, and test data management software, such as PowerDB and TORKEL Win, the BVM enables you to perform a completely automated battery bank capacity test according to the IEC test method. This test also meets NERC/FERC requirements.
The BVM is designed in modular form where one BVM device is used for each battery or jar in the string to be tested. One BVM for each battery connects to the next in a daisy- chain (up to 2x120 units), thereby providing easy and economical expandability to meet the testing requirements for small to large battery bank systems.
Setting up the BVM system for a test is quick and easy. Each BVM unit is identical and can be connected in any battery test position, thus providing maximum flexibility and interchangeability of the BVMs. The BVM Auto Discovery feature enables the host device to automatically determine the number of batteries under test and provide sequential identification of each BVM unit in the test string.
The Megger BVM150 Battery Voltage Monitor System (16 BVM Units, Clamps, Case) # CJ-59092-US-EN is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
CJ-90090 | Request Quote | View Details → |
CJ-59092-US-ENCurrent | Request Quote | Viewing |
Accessories, replacement sensors, and parts for this product family.
| Model | Price | |
|---|---|---|
KG-00692 | Request Quote | View Details → |
04-30052 | Request Quote | View Details → |
04-30050 | Request Quote | View Details → |
CJ-59090 | Request Quote | View Details → |
45-10046 | Request Quote | View Details → |
HC-50040 | Request Quote | View Details → |
40-06300 | Request Quote | View Details → |
KG-00690 | Request Quote | View Details → |
