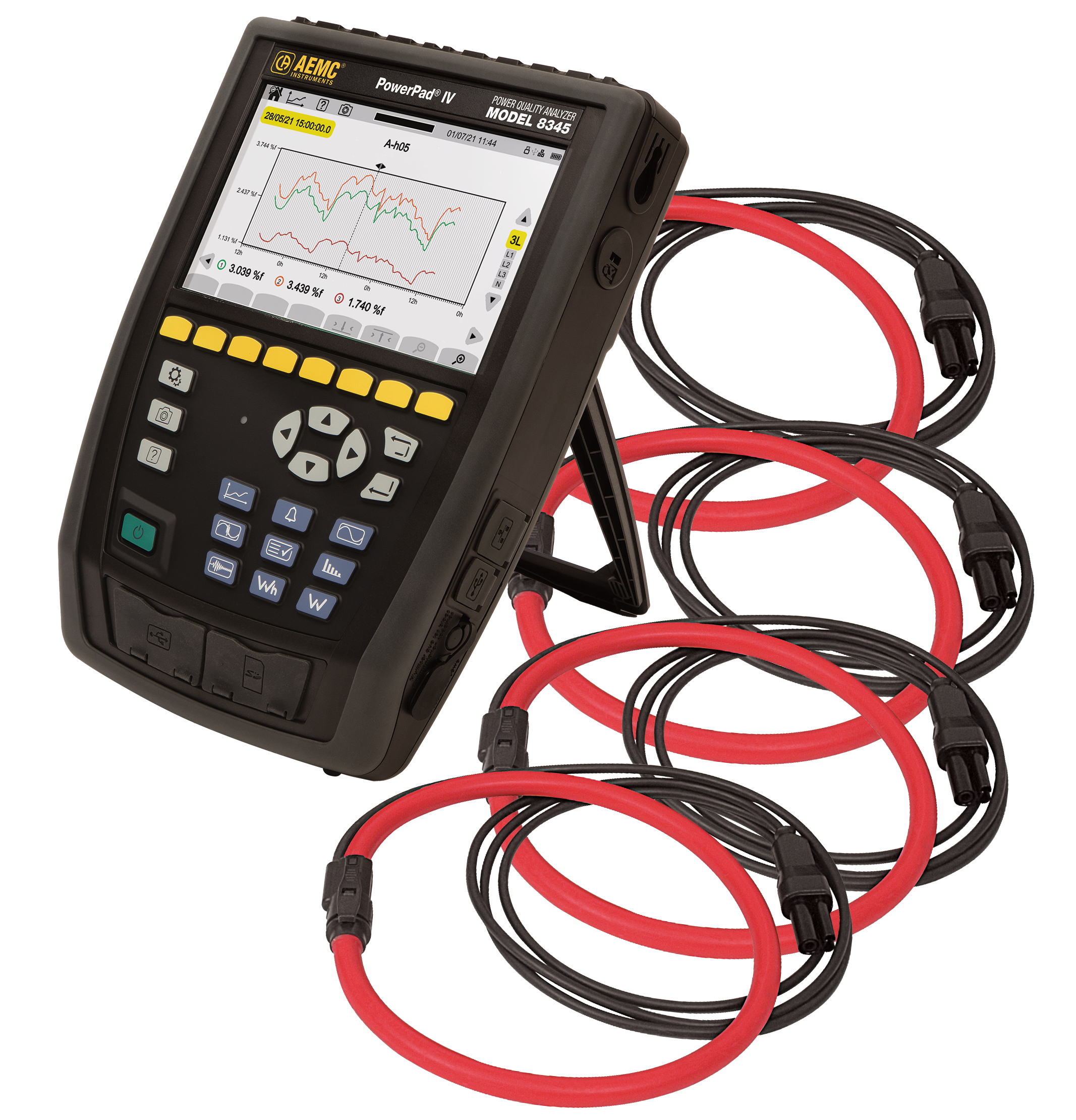

PowerPad IV Model 8345 w/4 193-24-BK Sensors

Cat. #2136.37 bundles the PowerPad IV Model 8345 with four 193-24-BK AmpFlex flexible current sensors — well-suited for measuring large conductors and switchgear where rigid clamps don't fit.

The PowerPad model 8345 is a portable three-phase, Class A Power Quality Analyzer that enables technicians and engineers to measure and perform diagnostics and power quality work on one, two or three phase networks. This very advanced event recorder meets the highest performance and measurement time accuracy requirements providing a large number of calculated values and processing functions to make installations and maintenance easier. An energy valuation mode is integrated, allowing for the display of dollar value cost of energy. Harmonics and interharmonics are calculated according to IEC 61000-4-7. It also includes the possibility to detect and measure main signaling (MSV). The flicker measurements comply with IEC61000-4-15. Its Trend mode allows all parameters to be recorded every 200 ms. The Alarm mode adds the ability to monitor the power system and send Emails to the user. The 10-period transient mode, now with the ability to program the number of transients prior to triggering, captures very fast events (up to 2.5 μs). In addition, it incorporates a surge mode that measures 500 ns peaks up to 12 kV. We still have the Inrush mode which captures electrical signals during load start-up.

Includes: meter, four 193-24-BK AmpFlex sensors, extra-large tool bag, internal carrying pouch, hand strap, USB cable, five 10 ft black voltage leads with alligator clips, twelve color-coded input ID markers, power adapter (PA32ER) with US power cord, two 6 ft stackable leads, two 10 ft black voltage leads with alligator clips for the PA32ER, SD card, one power-plug adaptor for the PA32ER, 5.8 A·h Li-ion battery pack, quick start guide, and USB stick with DataView software and user manual.

The AEMC Instruments PowerPad IV Model 8345 w/4 193-24-BK Sensors # 2136.37 is manufactured by AEMC Instruments. Valley Instrument Service is an authorized AEMC Instruments dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
