SKU: MT-8200-49A

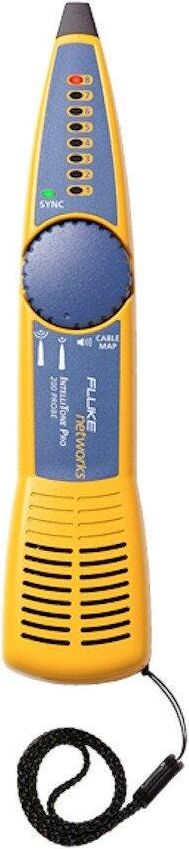

Fluke Networks MT-8200-63A probe detects IntelliTone digital signals on active networks and 500 to 1,200 Hz analog signals on inactive networks to locate, trace, and isolate copper cabling.
List price. Volume pricing available.
Fluke Networks MT-8200-63A probe detects IntelliTone digital signals on active networks and 500 to 1,200 Hz analog signals on inactive networks to locate, trace, and isolate copper cabling.
The Fluke Micromapper # MT-8200-49A is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | General specifications |
| Operating temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage temperature | -4 °F to +140°F (-20 °C to °C) |
| Operating relative humidity (% RH without condensation) | 95 % (50 °F to 95 °F; 10 °C to 35 °C)75 % (95 °F to 104 °F; 35 °C to 40 °C) Uncontrolled < 50 °F (< 10 °C) |
| Vibration | Random, 2 g, 5 Hz-500 Hz |
| Shock | 1 m drop test |
| Safety | EN 61010-1, Category: None |
| Altitude | 3000 m |
| EMC | EN 61326-1, FCC Part 15 B |
| Battery type and life | 9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical |
| Applications | Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cable Map function of the IntelliTone 200. |
| Dimensions | 8.73 x 1.88 x 1.26 in (22.2 x 4.8 x 3.2 cm) |
| Display | (8) LED indicators, Sync LED indicator |
| Audio | IntelliTone: Microprocessor controlled audio filesAnalog: Detected toner signal |
| Control | Thumbwheel switch, volume control wheel |
| Tone detection | Detects IntelliTone™ digital signal for Locate, Isolate, and Cable MapDetects analog SmartTone signal (500-1200Hz) and other analog toners. |
| Toner interface | Main Mod8 port for Cable Map on all 4 pairs of UTP / STP cabling. |
| Auto power down | Turns off automatically after 1 hour of inactivity |
This product is part of a family with 3 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
MT-8200-63A | Request Quote | View Details → |
MT-8200-49ACurrent | Request Quote | Viewing |
MT-8200-61-TNR | Request Quote | View Details → |
