SKU: MS-POE-IE

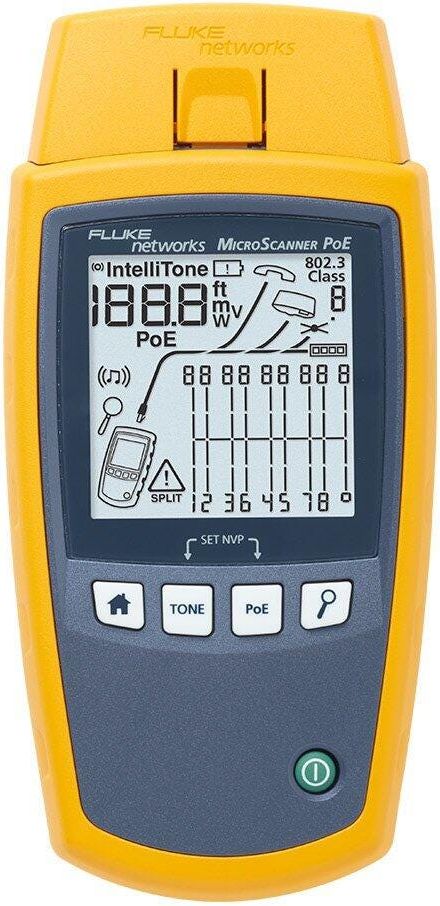

The MicroScanner PoE quickly determines if a problem is caused by a bad or unconnected cable, insufficient power, or a Powered Device. Get details here.
List price. Volume pricing available.
The MicroScanner PoE quickly determines if a problem is caused by a bad or unconnected cable, insufficient power, or a Powered Device. Get details here.
The Fluke MS-POE Industrial Ethernet Tester # MS-POE-IE is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Environmental specifications |
| Operating temperature | 32 °F to 113 °F (0 °C to 45 °C) |
| Storage temperature | -4 °F to +140 °F (-20 °C to +60 °C) |
| Operating relative humidity (% RH without condensation) | 90 % (50 °F to 95 °F 10 °C to 35 °C)75 % (95 °F to 113 °F 35 °C to 45 °C) |
| Shock and Vibration | Random, 2 g, 5 Hz-500 Hz (Class 2)1 m drop test with and without wiremap adapter attached |
| Safety | IEC 61010-1 3rd Edition |
| Altitude | 4,000 m; Storage: 12,000 m |
| EMC | IEC 61326-1 |
| Test connectors | Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. |
| Power | Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteriesBattery life: 20 hours of typical useOther compatible battery types: 2 AA photo lithium, NIMH, NICAD |
| Dimensions and weight (with batteries installed and wiremap adapter attached) | 3 in x 6.4in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm)MicroScanner™ PoE: 10.6 oz (300 g) |
| Display | Monochrome LCD with backlight |
| Cable test | Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. MicroScanner™ PoE also shows HIGH Ω when the resistance of the cable is more than 12.5 Ω. Displays results on one screen. |
| Tone | Generates IntelliTone™ and normal analog toning signals |
| PoE | MicroScanner™ PoE: Solicits and detects the presence of 802.3af, at, bt, and UPOE (Cisco’s Universal Power over Ethernet) compatible PoE devices |
| Cable types tested | Twisted pair: UTP, FTP, SSTP |
| Length test | Range: 460 m (1500 ft)Resolution: 0.3 m (1 ft)Typical accuracy: ± 4% or 0.6 m (2 ft) whichever is greater. NVP uncertainty is an additional error.Calibration: User-settable NVP for twisted pair. Can determine actual NVP with known length of cable. |
| Wiremap test | Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults. |
| Ethernet port detection | MicroScanner™ PoE: Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps. |
| Tone generator | Supports toning and cable mapping with a Fluke Networks digital IntelliTone™ probe. Generates four tones compatible with typical analog probes. SmartTone™ feature gives positive identification of cables in bundles when using an IntelliTone or an analog probe. |
This product is part of a family with 3 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
MS-POE-IECurrent | Request Quote | Viewing |
MS-POE-IE-KIT | Request Quote | View Details → |
MS2-100-IE | Request Quote | View Details → |
