SKU: MR60

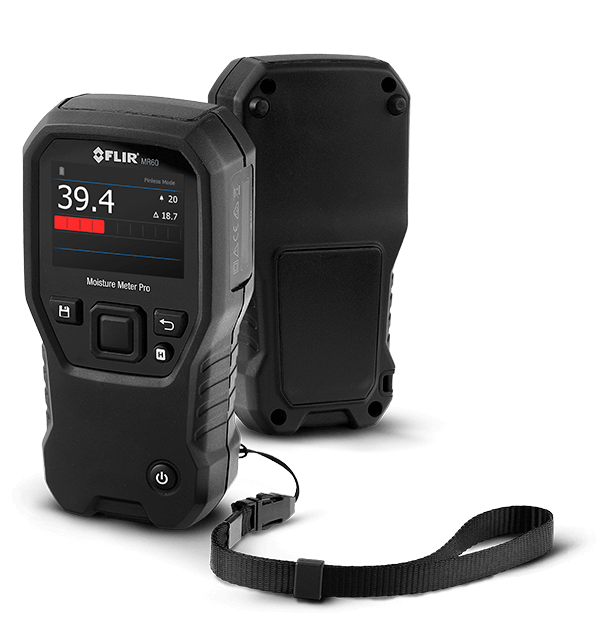

The FLIR MR60 Moisture Meter Pro is an easy-to-use pin and pinless moisture meter with advanced functionality. An integrated pinless sensor and an external pin probe provide the flexibility to take destructive or non-destructive measurements. Select one of the eleven material groups for pin moisture, or set a reference point for pinless moisture scanning. Then conveniently save screenshots of your measurements as a CSV file with the date, time, and settings.
List price. Volume pricing available.
The FLIR MR60 Moisture Meter Pro is an easy-to-use pin and pinless moisture meter with advanced functionality. An integrated pinless sensor and an external pin probe provide the flexibility to take destructive or non-destructive measurements. Select one of the eleven material groups for pin moisture, or set a reference point for pinless moisture scanning. Then conveniently save screenshots of your measurements as a CSV file with the date, time, and settings.
The FLIR MR60 Professional Moisture Meter # MR60 is manufactured by FLIR. Valley Instrument Service is an authorized FLIR dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Includes | MR60, MR02 pin probe, Quick Start Guide, International Charger, Warranty Card, Brochure Card |
| Display type (W x H) | QVGA (320 x 240) pixel 2.3" 64K color TFT graphical display |
| Measurement Resolution | 0.1 |
| Pin Moisture via Ext Probe Range | Construction material groups: 0- 20% (reference only) / 10: brick, cement screed, concrete / 11: cement mortar, anhydrite screed, lime mortar, plaster Wood groups 1-9: 1-5: oak, most maples, pine, hickory, teak, sycamore 6-9: building materials: plywood, drywall, OCD 7% - 30% 30 % - 100% ±1.5% (reference only) Construction material groups: 10: brick, cement screed, concrete 11: cement mortar, anhydrite screed, lime mortar, plaster 0- 20% (reference only) |
| Pinless Moisture Depth | 1.9cm (0.75") maximum |
| Pinless Moisture Range | 0–100 relative measurement |
| Response Time Pin Mode | 750 ms |
| Response Time Pinless | 100 ms |
| Sample Rate | 10Hz (approx., both modes) |
| Internal Memory | 4GB |
| Saved Image File format | Bitmap (.bmp) with measurement values overlaid |
| Stored Data File Format | Comma Separated Values (.csv) format with date/time stamp. Reading value, reading type included. |
| Stored Image Capacity | 9999 images |
| Auto Power Off | Programmable: OFF, 1, 5, or 20 minutes |
| Battery | 3.7 V, 3000mAh Li-ion rechargeable via micro USB |
| Continuous Run Time | 18 hours max |
| Power Adapter | 100–240 V input/ 5 V 1A output |
| Power Requirements | Integrated rechargeable battery |
| Typical Usage | 4 work weeks |
| Packaging Size | 51.2 x 25.8 x 64 cm†(20.2 x 10.2 x 25.2 in.) |
| Agency Approvals | FCC Class B, CE, UL |
| Certification Standards | EN61326 (EMC), EN61010 (Battery + Charger) |
| IP Rating/Drop Test | IP54/3m (9.8 ft) |
| Operating Humidity | ≤ 90%, 0~30°C (32~86°F), ≤ 75%, 30~40°C (86~104°F), ≤ 45%, 40~50°C (104~122°F) |
| Operating Temperature | 0~50 °C (32~122 °F) |
| Storage Humidity | 90% RH |
| Storage Temperature | -10~60°C (14~140°F) |
| Warranty | 2 years |
Featuring Infrared Guided Measurement (IGM), the MR160 helps you quickly target moisture issues, visually guiding you to the spot where you can confidently take measurements and analyze readings. An integrated pinless sensor and an external pin probe provide the flexibility to take either intrusive or non-intrusive measurements. The MR160 can serve as your go-to troubleshooting tool right out of the box — or as the perfect complement to any high resolution thermal camera you already own.
Troubleshoot moisture and building problems wherever you go with the FLIR MR160-KIT2. This kit features the MR160, a moisture meter with IGM to quickly target problem areas, as well as the C3-X, a full-featured, pocket-sized thermal camera designed for a wide range of building and electrical applications. The MR160’s integrated pinless sensor and external pin probe provide the flexibility to take either intrusive or non-intrusive measurements. The kit also includes the MR06 wall cavity probe for even greater functionality.
The FLIR MR160-KIT5 has all the tools you need to quickly locate and diagnose moisture issues. Featuring Infrared Guided Measurement (IGM), the MR160 visually guides you to the problem so you can confidently take measurements and analyze readings. An integrated pinless sensor and an external pin probe provide the flexibility to take either intrusive or non-intrusive measurements. The kit also includes a hammer/wall cavity probe combo for additional measurement applications.
Featuring Infrared Guided Measurement (IGM) technology powered by a built-in FLIR Lepton 80 x 60 thermal imaging sensor, the MR176 visually guides you to the precise spot that moisture may be hiding. Use the integrated laser and crosshair to help pinpoint the surface location of the issue found with IGM. An integrated pinless sensor and an external pin probe provide the flexibility to take either non-intrusive or intrusive measurements. A field-replaceable temperature and relative humidity sensor delivers added convenience.
