SKU: MR277

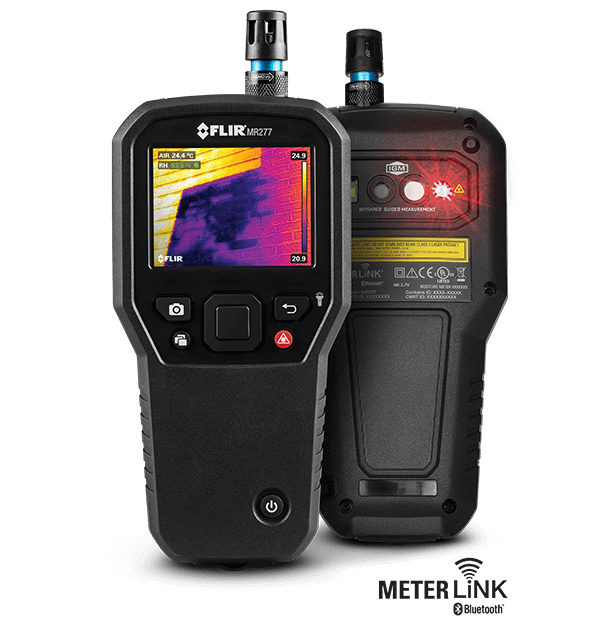

The MR277 is the first FLIR building inspection system to combine the advantages of Infrared Guided Measurement (IGM) and our patented Multi-Spectral Dynamic Imaging (MSX) with advanced environmental sensors to help you quickly locate, clearly identify, and easily document problems. IGM technology and a laser pointer isolate the area where you can use the integrated pinless moisture sensor for non-invasive readings or external pin probe for invasive measurements. With automatically calculated environmental readings and a field-replaceable humidity/temperature sensor, the MR277 lets you finish the job and minimize downtime. Connect to external devices with METERLiNK and use FLIR Tools to enhance troubleshooting and reports.
List price. Volume pricing available.
The MR277 is the first FLIR building inspection system to combine the advantages of Infrared Guided Measurement (IGM) and our patented Multi-Spectral Dynamic Imaging (MSX) with advanced environmental sensors to help you quickly locate, clearly identify, and easily document problems. IGM technology and a laser pointer isolate the area where you can use the integrated pinless moisture sensor for non-invasive readings or external pin probe for invasive measurements. With automatically calculated environmental readings and a field-replaceable humidity/temperature sensor, the MR277 lets you finish the job and minimize downtime. Connect to external devices with METERLiNK and use FLIR Tools to enhance troubleshooting and reports.
The FLIR MR277 Building Inspection System w/ Moisture Psychrometer & MSX IR Camera # MR277 is manufactured by FLIR. Valley Instrument Service is an authorized FLIR dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| MSX | Embosses visual details on full resolution thermal image |
| Thermal image palettes | Iron, Rainbow, Arctic, White-Hot, Black-Hot |
| Pin Moisture | Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only |
| Pin Moisture Groups | 11 Material Groups |
| Air Temperature | Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C) |
| Relative Humidity | Range 10% to 90% / Basic Accuracy 2.5% RH |
| Dew Point | Range -30°C to 50°C (-22°F to 122°F) / Basic Accuracy ±1.0°C (±1.8°F) |
| Includes | FLIR MR13 Replaceable Temperature and Relative Humidity Sensor, FLIR MR02 Standard Pin Probe, quick start guide, international USB charger, USB cable, and lanyard |
| Digital Camera | 2 MP, 70.5° × 56° FOV |
| Display Type | QVGA (320 × 240 pixels) 2.8 in. color TFT graphical display |
| Field of View [W x H] | 57° × 44° |
| Image Modes | Thermal, Visual, MSX® |
| Image Update Speed Frequency | 9 Hz |
| Imaging Detector | FLIR Lepton microbolometer |
| Laser Orientation | Single laser pointer to center of thermal image |
| Sensitivity | <150 mK |
| Spectral Response | 8 to 14µm |
| Thermal image minimum focus distance | 10 cm (4 in) |
| Thermal Image Resolution [W x H] | 19200 pixels (160 × 120) |
| Image Calibration | Automatic with manual lock scale option |
| Measurement Resolution | 0.1 |
| Pinless Measurement Depth | 19 mm (0.75 in) max |
| Pinless Moisture Range | 0 to 100 |
| Response Time Pin Mode | 750 ms |
| Response Time Pinless | 100 ms |
| Internal Memory | 8 GB |
| Saved Image File format | Radiometric JPEG |
| Stored Image Capacity | 15000 images |
| Auto Power Off | Programmable: Off, 5, 10, 20, or 30 minutes |
| Battery | Rechargeable 3.7 V, 5400 mAh LiPo |
| Continuous Run Time | 8 hours max |
| Typical Usage | 4 work weeks |
| Dimensions (H x W x L) | 17.5 cm × 9.0 cm × 4.2 cm (6.9 in × 3.5 in × 1.7 in) |
| Packaging Size | 55 × 31 × 32 cm (21.6 × 12.3 × 12.4 in) |
| Weight | 400 g (14.1 oz) |
| Agency Approvals | CE, FCC Class B, RCM |
| Certification Standards | EN 61326 (EMC), EN 60825-1 Class 2 (Laser) |
| Drop test | 2 m (6.6 ft) |
| Mixing Ratio | Range 0 to 560 GPP (0.0 to 80.0 g/kg) / Basic Accuracy ±2 GPP (0.25 g/kg) |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| Vapor Pressure | Range 0.0 to 12.0 kPa / Basic Accuracy ±0.05 kPa |
| Warranty | 10 year |
