Capacitive Limit Level Sensor

Capacitive Limit Level Sensor

• Media-contacting detection of limit levels in tanks and pipes
• Detection of different substances (liquid, viscous, granular, powder form)
• Hygienic PEEK tip, CIP/SIP compatible
• EHEDG certified (with NCLS-WA1 process adapter)
• Highly visible ring LED
• 12…32 VDC, power consumption: typically 1 W, max. 3 W
• Two digital outputs, separately adjustable as NO/NC
• PNP, NPN or push-pull, switchable
• IO-Link for parameterization/process values
• Process connection G1/2" male thread, hygienic (in combination with TURCK adapters)
• 4-pin connector device, M12 × 1

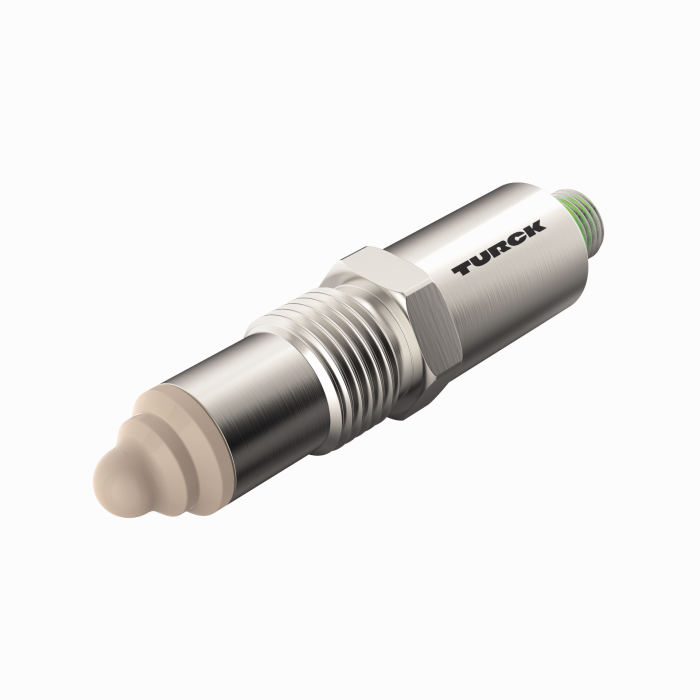

The Turck Capacitive Limit Level Sensor # NCLS-30-UN6X-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
