DPM1000 1000 A AC/DC True-RMS Power Clamp Meter

DPM1000 1000 A AC/DC True-RMS Power Clamp Meter.

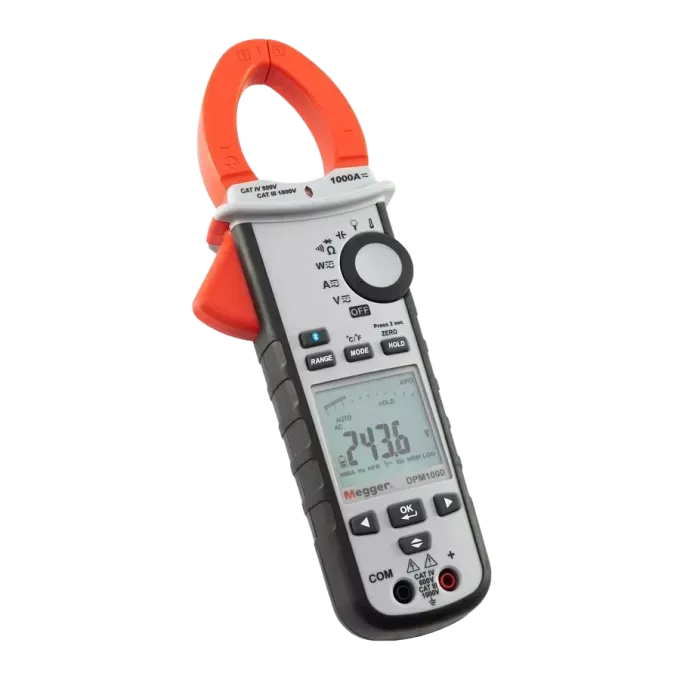

The Megger DPM1000 combines a power meter, harmonics analyzer, and data logger into one handheld clamp-on package. Designed to BS EN 61010-1 CAT IV 600 V for supply-side applications, the DPM1000 reads AC, DC, pulsed, and mixed currents up to 1000 A by clamping the jaws around the conductor; voltages up to 1000 V AC or DC are measured via the supplied test leads. When measuring power, both techniques run simultaneously.

Single- and three-phase active power and power factor are computed automatically (Watts to 1 MW); the harmonic content of the signal is displayed up to the 25th harmonic alongside total harmonic distortion (THD) and distortion factor. Three-phase rotation indication, capacitance to 4000 µF, frequency to 10 kHz, resistance to 100 kΩ, diode test, and continuity beeper round out the meter functions. Auto-ranging across all parameters with True-RMS conversion (AC + DC) for accuracy on non-sinusoidal waveforms.

Temperature measurements up to 1000 °C are made via the supplied TP100 K-type thermocouple probe. Inrush peak current capture, data hold, min/max/peak hold, non-contact voltage alert, and an internal LED torch (auto-on during clamp operation) make the meter practical in dim or live-circuit environments.

Data logger stores up to 9999 timestamped records to non-volatile memory, with selectable record rates from 1 second to 600 seconds. Built-in Bluetooth v4.0 transfers real-time data to the free Megger Link app on iOS or Android over up to 10 m range; downloaded data graphs and reports for analysis. Auto power-off at 15 minutes preserves battery life.

Specifications: ACA/DCA basic accuracy ±(1.5% +5d) with 0.01 A resolution; ACV ±(1.5% +5d), DCV ±(0.7% +2d) at 1000 V; 3.5 MΩ input impedance; 1000 V rms overload protection; sampling rate 3 times/sec. CAT IV 600 V and CAT III 1000 V safety. 40 mm conductor / 61 × 12 mm busbar maximum jaw opening. Powered by 6 × AAA cells, ~60 hours battery life. Dimensions 103 × 258 × 55 mm; weight 600 g with batteries.

Supplied complete with the DPM1000 instrument, 4 mm test lead set (DCM 1013-358), TP100 K-type thermocouple probe (1013-364), and a hard carrying case.

The Megger DPM1000 1000 A AC/DC True-RMS Power Clamp Meter # 1013-356 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
