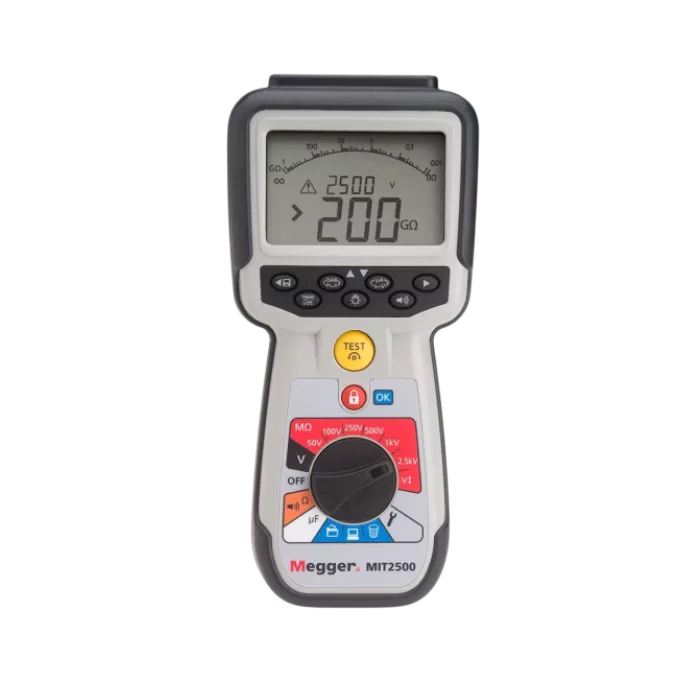

MIT2500 Insulation Tester (2.5 kV)

The MIT2500 Insulation and Continuity Tester has been designed for motor and cable testing, specialist applications and electrical testing applications, where operation voltages exceed 1000 V and higher insulation test voltages are needed.

The MIT2500 offers both fixed range voltages of 50 V, 100V, 250 V, 500 V, 1000 V and 2500 V, as well as a variable range that allows any voltage between 50 V and 2500 V to be “dialled in”. This is supported by the new test voltage feedback control, which maintains the output test voltage to within 2% of the selected range, even when under test.

The MIT2500 uses the redesigned case, back-stand, and 6 cell battery compartment, as well as incorporating a Guard terminal to reduce surface tracking currents that reduce accuracy at higher voltages.

All instruments are over-moulded for increased protection and achieve an IP54 weatherproof rating.

The feedback controlled insulation test voltage is now accurate to +2% -0% compared to the original +20%, providing a more accurate test voltage without the risk of over-voltage damage to circuits.

Key Features

• Insulation testing up to 2.5 kV and 200 GΩ range in a hand held instrument
• Guard terminal for high resistance accuracy
• Adjustable insulation test voltage from 50 V to 2500 V
• Stabilized insulation test voltage
• Rechargeable options for mains and car charging
• Single range, faster continuity testing from 0.01 Ω to 1 MΩ
• Polarization Index (PI) & Dielectric Absorption Ratio (DAR)
• CAT IV 600 V applications

The Megger MIT2500 Insulation Tester (2.5 kV) # 1004-745 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
